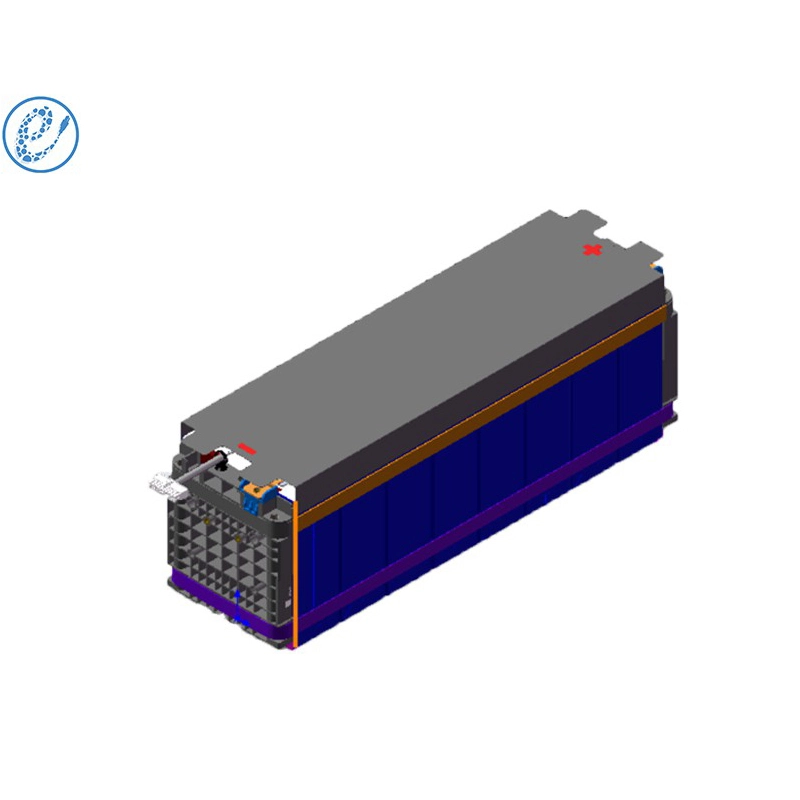

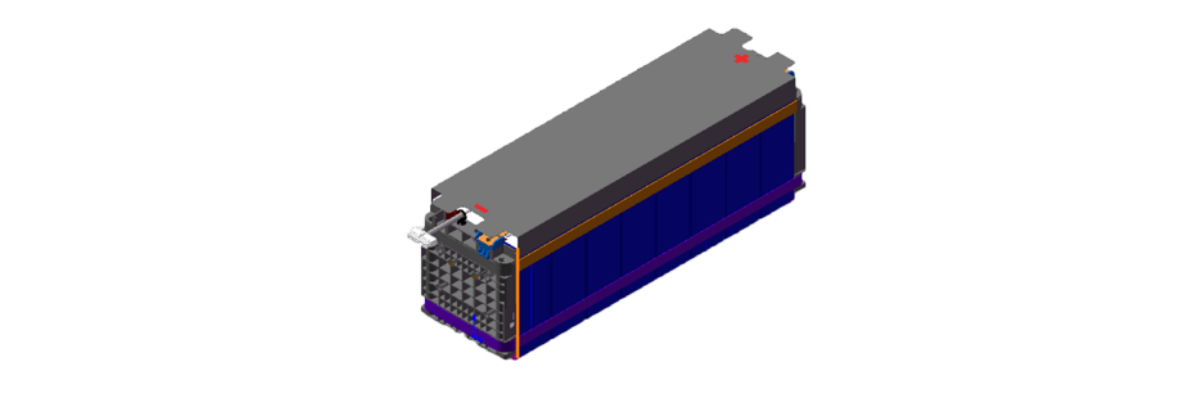

MS0605-25.6V205A-(205AH 1P8S) module. Adopting high-performance battery cell with nominal voltage of 25.6V and capacity of 205Ah, this module has excellent performance and internal integrated BMS battery management system, which can avoid overcharging or overdischarging of the battery when charging and discharging the module, reducing the loss of the battery and prolonging the service life of the battery. It is able to meet a wide range of applications, such as electric boats and electric vehicles.
| Items | MC0605-25.6V205A | Note | |
| 205Ah1P8S | |||
| Nominal voltage(V) | 25.6 | ||
| Operating voltage(V) | min | 20 | |
| max | 29.2 | ||
| Nominal capacity (Ah) | 205 | 25℃ | |
| Nominal energy (KWh) | 5.248 | 25℃ | |
Cell Configuration | 1P8S | ||
| End of life residual capacity (Ah) | 164 | ||
| Module weight (Kg) | 35 | ||
| Maximum continuous charge current (A) | 205 | ||
| Maximum continuous discharge current (A) | 205 | ||
| Maximum pulse discharge current (≤10s) | 410 | ||
| SOC operating range (%) | 10~90 | ||
| Insulation requirements(MΩ) | ≥20 | 500V DC. High voltage output to battery module shell, at the normal temperature, and humidity | |
| Module cooling method | Natural cooling | ||
| Module heating film | No | ||
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L (mm) | 480.9 | ||
| Dimension B (mm) | 177 | ||
| Dimension H (mm) | 220 | ||
