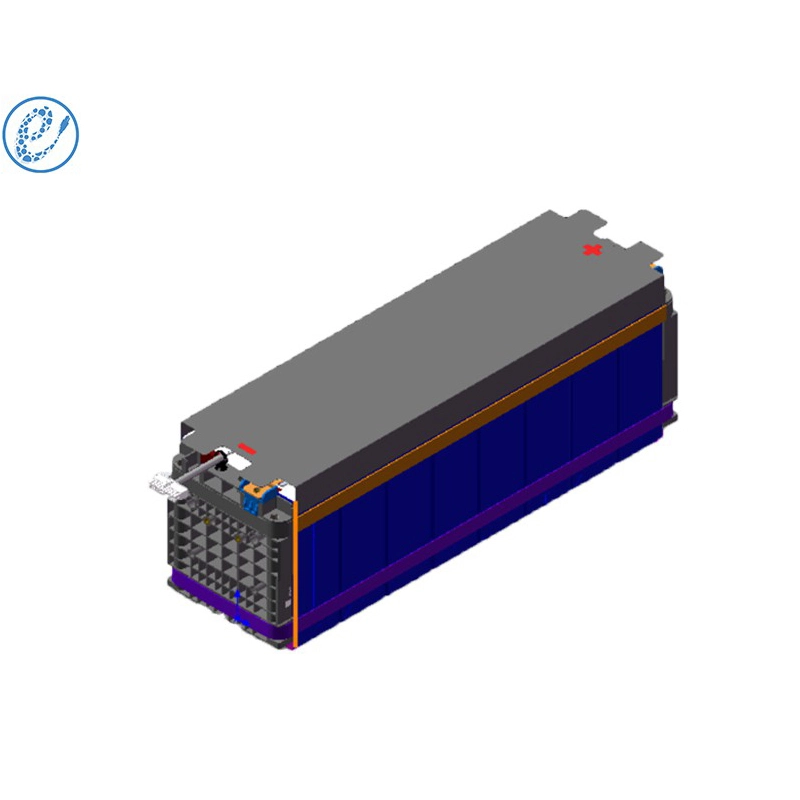

MS0605-12.8V560A-(280AH 2P4S) module is designed with 12.8 V rated voltage and 560Ah rated capacity. Its internal modular structure makes it easy to install and maintain. It features high energy density and low self-discharge rate, making it ideal for applications such as solar energy storage and backup power. It also has an integrated BMS power management system that optimises energy distribution and improves efficiency and performance. Minimises energy loss and extends the overall life of the battery.
| No. | Items | MS0605-12.8V560A | Note | |
| 280Ah2P4S | ||||
| 1 | Nominal voltage(V) | 12.8 | ||
| 2 | Operating voltage(V) | min | 10 | |
| 3 | max | 14.6 | ||
| 4 | Nominal capacity (Ah) | 560 | 25±2℃, 1C | |
| 5 | Nominal energy (KWh) | 7.168 | 25±2℃, 1C | |
| 6 | Cell Configuration | 2P4S | ||
| 7 | Module weight (Kg) | ≈45 | ||
| 8 | Maximum continuous charge current (A) | 280 | ||
| 9 | Maximum continuous discharge current (A) | 280 | ||
| 10 | Maximum pulse discharge current (≤10s) | 400 | SOC＞30% | |
| 11 | SOC operating range (%) | 20~100 | ||
| 12 | Insulation requirements(MΩ) | ≥20 | 1000V DC. High voltage output to battery module shell, at the normal temperature, and humidity | |
| 13 | Module cooling method | Natural cooling | ||
| 14 | Module heating film | No | ||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 16 | Dimension L (mm) | 619.3 | ||
| Dimension B (mm) | 177.4 | |||
| Dimension H (mm) | 216.7 | |||
