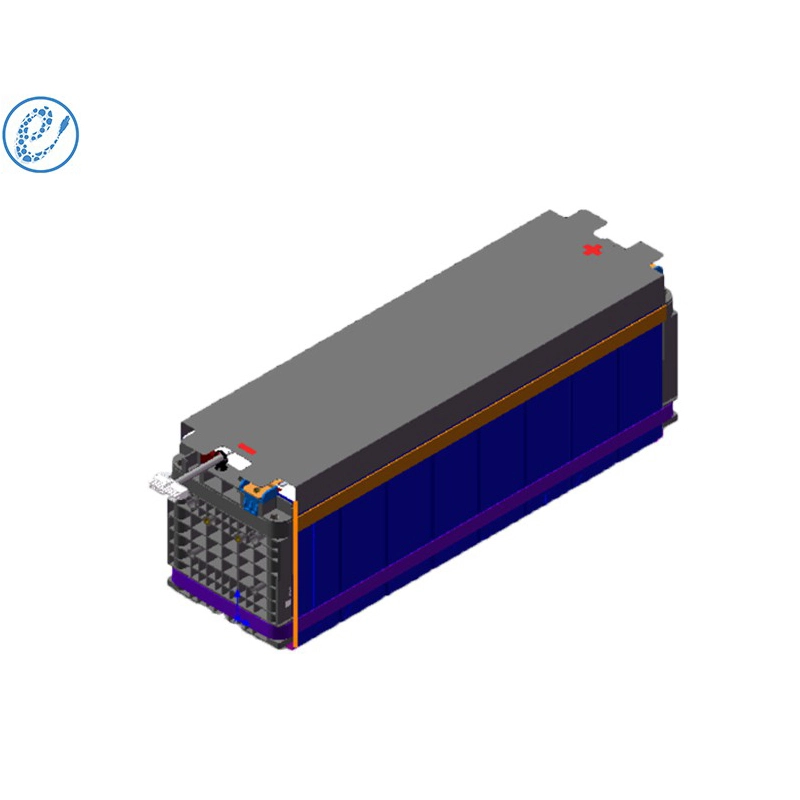

MS0605-12.8V410A(205AH2P4S) module has a large capacity of 410Ah and a rated voltage of 12.8 V. The large capacity of 410Ah ensures that it can provide long-lasting power support for your devices and systems without frequent charging. The compact internal design maximises space utilisation, making it a high-performance and cost-effective lithium-ion battery module.
| No. | Items | MC0605-12.8V410A | Note | |
| 205Ah2P4S | ||||
| 1 | Nominal voltage(V) | 12.8 | ||
| 2 | Operating voltage(V) | min | 10 | |
| 3 | max | 14.6 | ||
| 4 | Nominal capacity (Ah) | 410 | 25℃ | |
| 5 | Nominal energy (KWh) | 5.248 | 25℃ | |
| 7 | Cell Configuration | 2P4S | ||
| 8 | End of life residual capacity (Ah) | 328 | ||
| 9 | Module weight (Kg) | 35 | ||
| 10 | Maximum continuous charge current (A) | 410 | ||
| 11 | Maximum continuous discharge current (A) | 410 | ||
| 12 | Maximum pulse discharge current (≤10s) | 500 | 25℃ | |
| 13 | SOC operating range (%) | 20~100 | ||
| 14 | Insulation requirements(MΩ) | ≥20 | 500V DC. High voltage output to battery module shell, at the normal temperature and humidity | |
| 15 | Module cooling method | Natural cooling | ||
| 16 | Module heating film | No | ||
| 17 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 18 | Dimension L (mm) | 480.9 | ||
| Dimension B (mm) | 177 | |||
| Dimension H (mm) | 220 | |||
