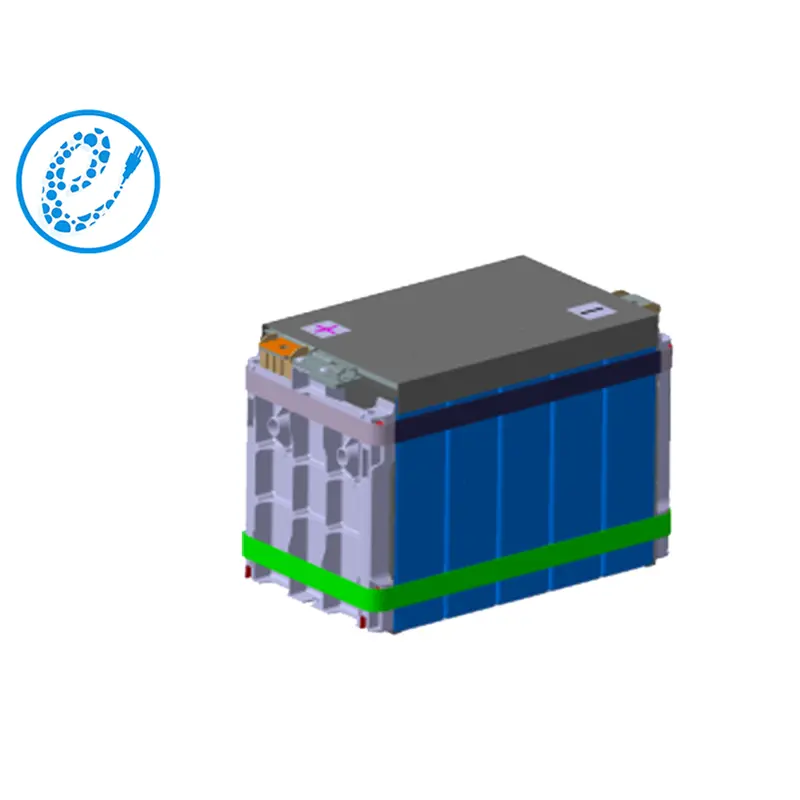

MS0302-16.1V228A-(228AH1P5S)-ZD

MS0302-16.1V228A has a rated capacity of 228Ah and a rated voltage of 16.1V.MS0302-16.1V228A has been rigorously tested and meets stringent quality standards for reliable and trustworthy performance. And it can meet your needs for various applications, such as electric forklift, electric boat and so on.


ItemsMS0302-228ANote
16.1V228A1P5S
Nominal voltage(V)16.1
Operating voltage(V)min12.5
max18.25
Nominal capacity(Ah)22825±2
Nominal energyKWh   3.6725±2
Cell Configuration1P5S
Maximum   continuous charge currentA11425±2
Maximum   continuous discharge currentA22825±2
Maximum   pulse discharge current(≤10s)(A45625±2
SOC operating range%20~100
Insulation   requirements(MΩ)20500V   DCHigh voltage output to   battery module shell, at the normal temperature and humidity
Module   cooling methodNatural   cooling
Module heating filmNO
Shipping capacity (SOC)≈30%SOC   is consistency in the same batch
Dimension L mm314.8
Dimension B mm178
Dimension H mm212
