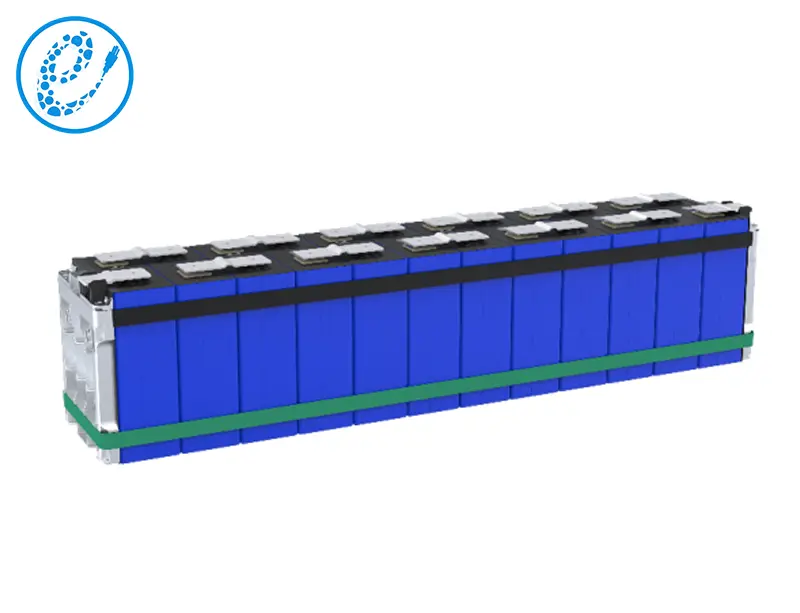

The MS0302-38.4V280A-(280AH1P12S)-ZD module is a high-performance energy storage solution suitable for both commercial and large-scale applications. With a voltage of 38.4V and a maximum current output of 0.5P, it offers reliable power delivery. Its 280AH capacity ensures ample energy storage for sustained operations.
-ZD_01.png "MS0302-38.4V280A-(280AH1P12S)-ZD_01.png")
| No. | Items | EP-LFP280Ah STANDARD MODULE | Note | |
| MS0302-38.4V280A | ||||
| 280AH1P12S | ||||
| 1 | Nominal voltage(V) | 38.44 | ||
| 2 | Operating voltage(V) | min | 30 | T＞0℃ |
| 3 | max | 43.8 | ||
| 4 | Nominal capacity(Ah) | 280 | ||
| 5 | Nominal energy（KWh ） | 10.752 | ||
| 6 | Cell Configuration | 1P12S | ||
| 7 | Maximum continuous charge rate | 0.5P | ||
| 8 | Maximum continuous discharge rate | 0.5P | ||
| 9 | SOC operating range（%） | 10~90 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | ||
| 11 | Module cooling method | Natural cooling | ||
| 12 | Module heating method | No | Or heating film | |
| 13 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension | 903.7*178.1*214（mm） | L*B*H | |
-ZD_03.png "MS0302-38.4V280A-(280AH1P12S)-ZD_03.png")
-ZD_04.png "MS0302-38.4V280A-(280AH1P12S)-ZD_04.png")
-ZD_05.png "MS0302-38.4V280A-(280AH1P12S)-ZD_05.png")
-ZD_06.png "MS0302-38.4V280A-(280AH1P12S)-ZD_06.png")
-ZD_07.png "MS0302-38.4V280A-(280AH1P12S)-ZD_07.png")
-ZD_08.png "MS0302-38.4V280A-(280AH1P12S)-ZD_08.png")
-ZD_09.png "MS0302-38.4V280A-(280AH1P12S)-ZD_09.png")
