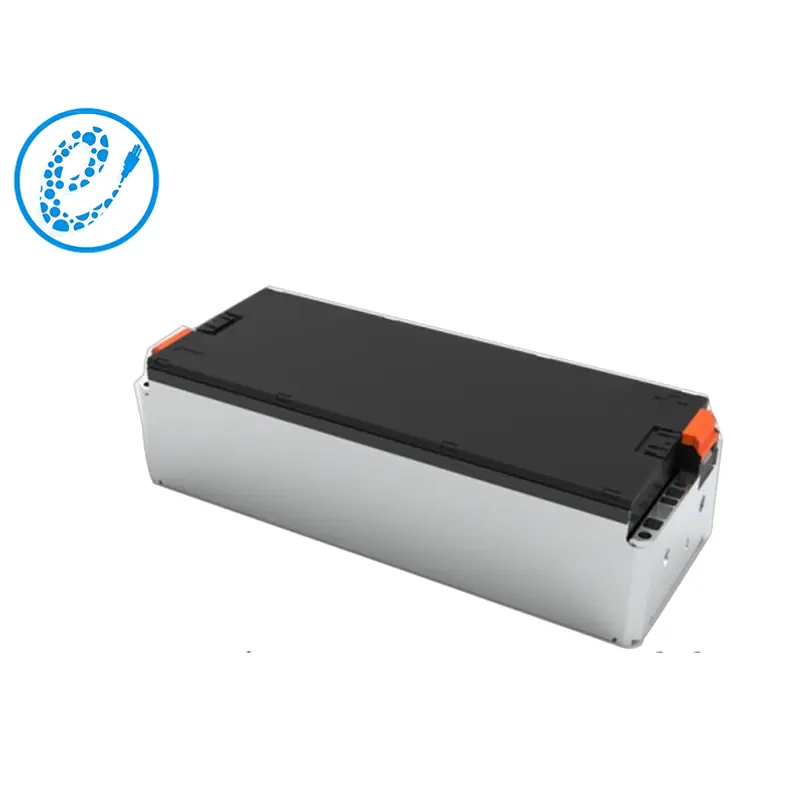

The MCXX23-44.64V50A-(NCM50AH1P12S) module is precision manufactured using the latest technology and is designed with a 50Ah rated capacity and 44.64V rated voltage. With an internal BMS battery management system, this module is therefore the perfect combination of efficiency and longevity, making it the best choice for companies looking for a reliable high capacity energy storage solution.
| No. | Items | MCXX23-44.64V50A | Note | |
| 50Ah1P12S | ||||
| 1 | Nominal voltage(V) | 44.64 | ||
| 2 | Operating voltage(V) | min | 33.6 | |
| 3 | max | 52.2 | ||
| 4 | Nominal capacity(Ah) | 50 | 25°C, 1/3C | |
| 5 | Nominal energy（KWh ） | 2.232 | 25°C, 1/3C | |
| 6 | Cell Configuration | 1P12S | ||
| 7 | Module weight（Kg） | 12.1 | ||
| 8 | Maximum continuous charge current（A） | ≤50A | ||
| 9 | Maximum continuous discharge current（A） | ≤100A | ||
| 10 | Maximum pulse discharge current（≤30s）（A） | ≤150A | ||
| 11 | SOC operating range（%） | 5~100 | ||
| 12 | Insulation requirements(MΩ) | ≥200 | ||
| 13 | Module cooling method | Natural cooling | ||
| 14 | Module heating film | NO | ||
| 15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| 16 | Dimension L （mm） | 357.8 | ||
| Dimension B （mm） | 151.5 | |||
| Dimension H （mm） | 108.5 | |||
