The EcoPower C5-LFP320W is a rechargeable Lithium Iron Phosphate (LiFePO4) battery cell that ensures long life, reduces replacement frequency and minimises environmental impact. It is the optimal choice for powering large industrial operations, commercial facilities and critical infrastructure.
.png "C5-LFP320AH_(1).png")
| Item | Specification | |

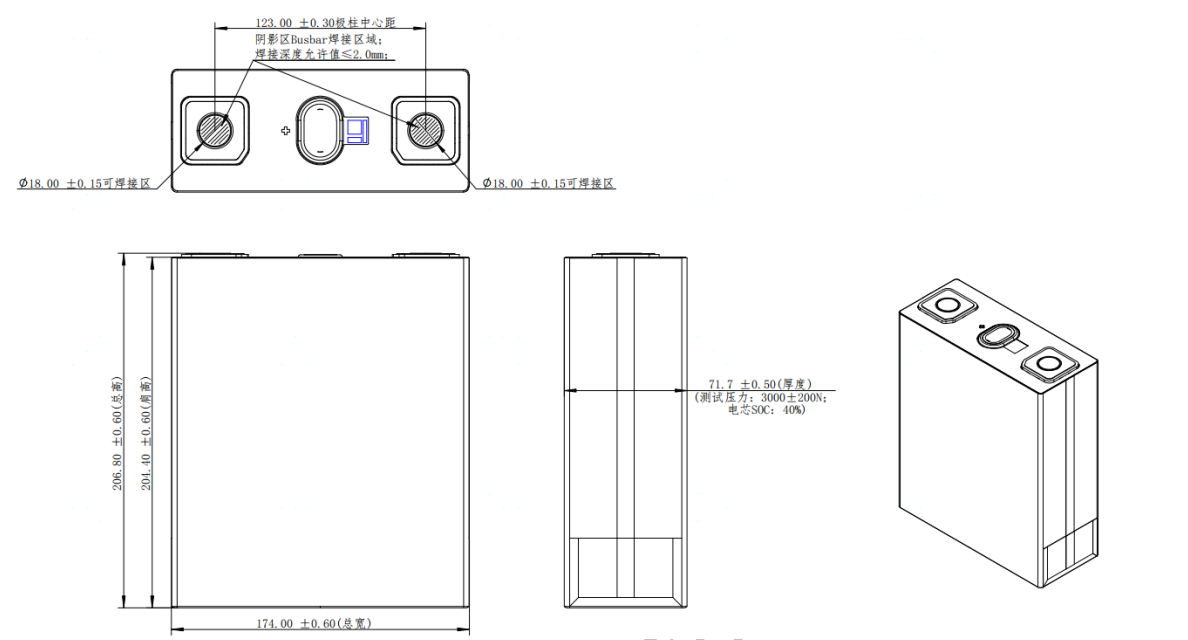

| Dimension | 174mm*71.7mm*206.8mm | |
| Weight | 5.78±0.2kg | |
| Min. capacity | 320Ah (1C) @ 25℃ | |
| Min. energy | 1024Wh (1C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |
| Terminal | Welding Terminal | |
| Impedance（1kHz） | ≤0.3mΩ | |
| Voltage | Max. | 3.65V |
| Nominal | 3.2V | |
| Min. | 2.0V （T≤0℃） 2.5V （T＞-0℃） | |
| Current | Maximum continuous charge power | 1P |
| Maximum continuous discharge power | 1P | |
| Energy density | Gravimetric | 177.16Wh/kg |
| Volumetric | 396.89Wh/L | |
| Temp. Condition | Operation (Charge) | 0~ 55℃ |
| Operation (Discharge) | -30 ~ 60℃ | |
| Storage | -30 ~ 60℃ | |
| Cycle Life | 1C/1C, 100% DOD 25℃ | 8000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
.png "C5-LFP320AH_(3).png")
.png "C5-LFP320AH_(4).png")
.png "C5-LFP320AH_(5).png")
.png "C5-LFP320AH_(6).png")
.png "C5-LFP320AH_(7).png")
.png "C5-LFP320AH_(8).png")
.png "C5-LFP320AH_(9).png")
