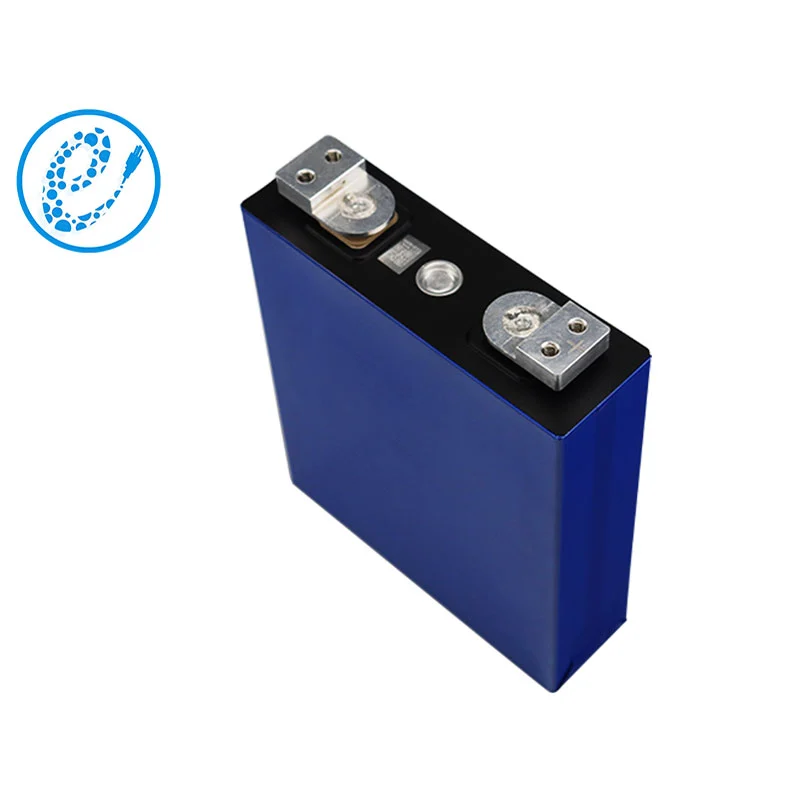

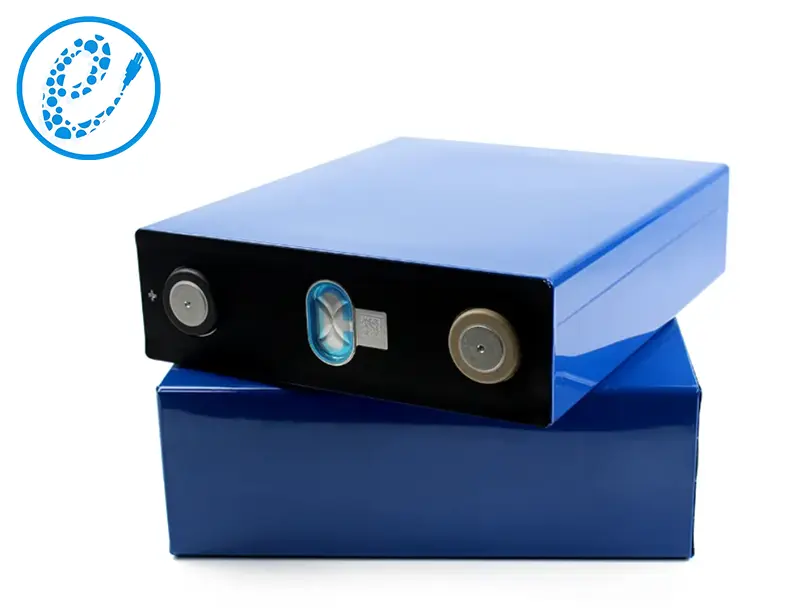

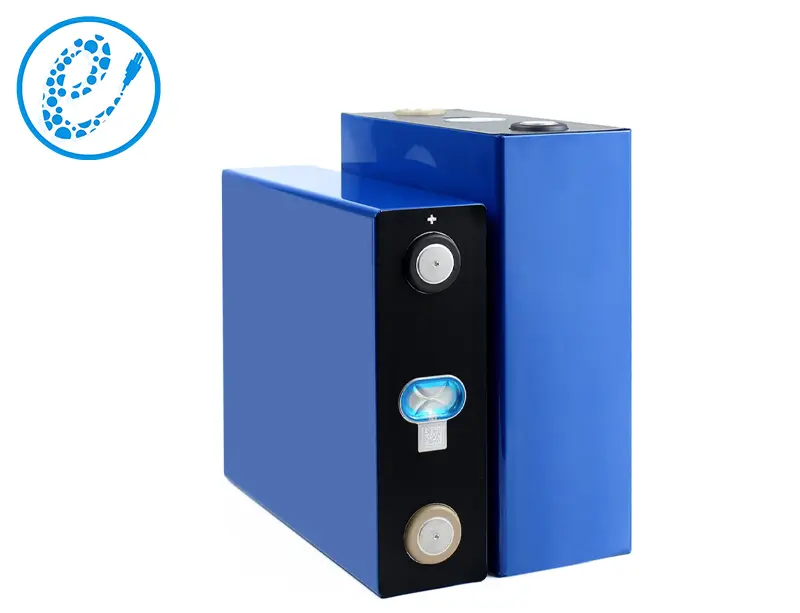

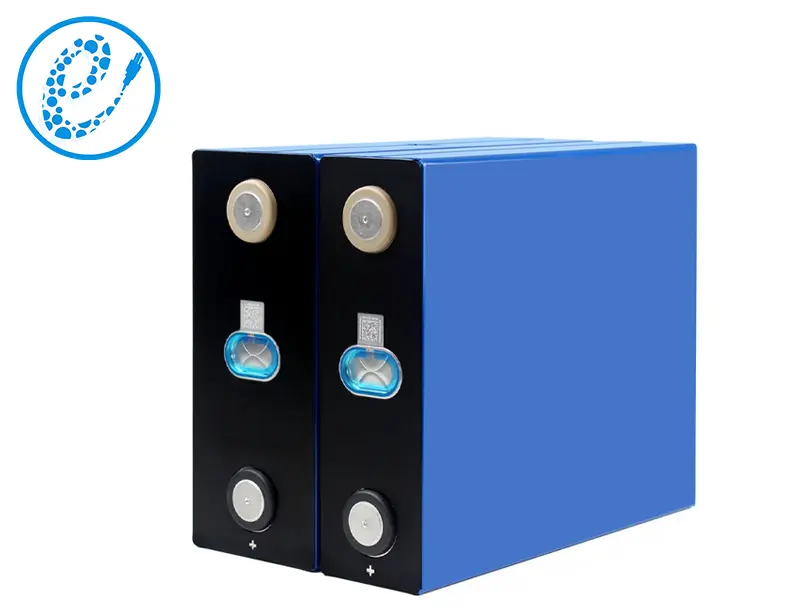

C23-LFP230W

The C23-LFP230W Lithium Ion battery has a high energy density and low internal resistance, making it ideal for use in electric vehicles, power tools, and other high-powered application scenarios. It's lightweight, compact size makes it easy to transport and install. Its high power density and fast charging time make it a reliable and efficient energy source for any application.


ItemSpecification

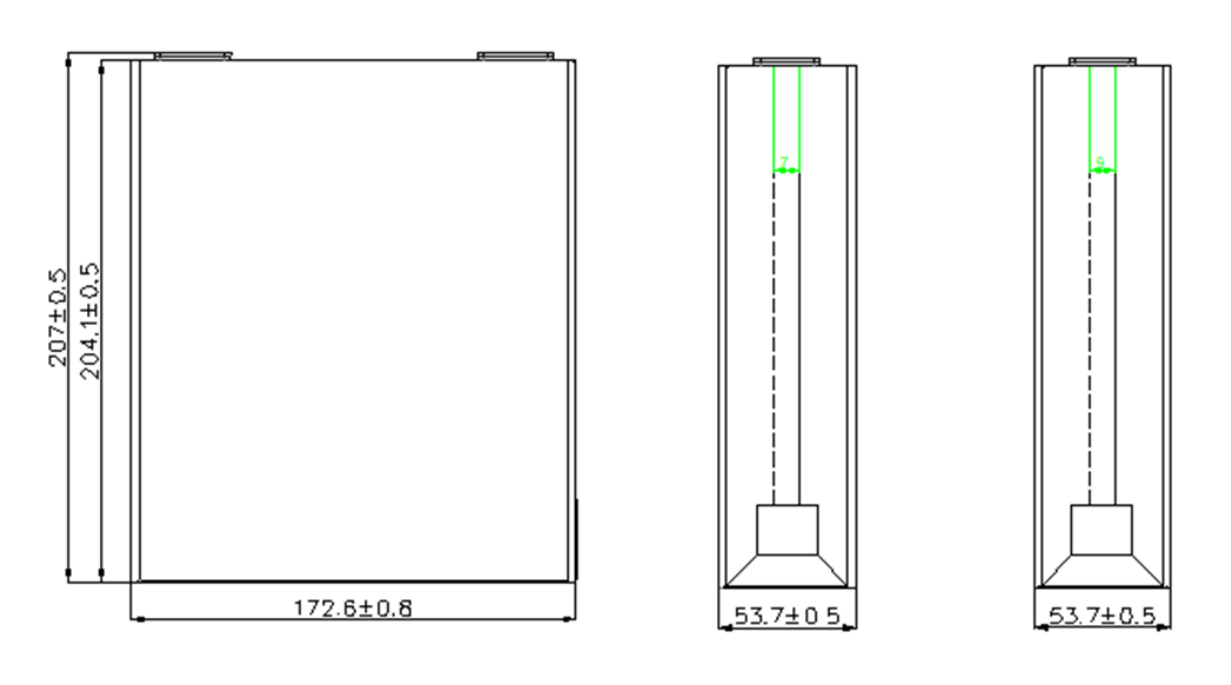

Dimension172.6mm*53.7mm*207mm
Weight4.2±0.05Kg
Min.   capacity230Ah (1C) @ 25℃
Min.   energy724.5Wh (1C) @ 25℃
Recommended SOC usage window10 ~ 90%
TerminalWelding Terminal
Impedance(1kHz)≤0.25mΩ
VoltageMax.3.65V
Nominal3.2V   (0.5C)
3.15 (1C)
Min.2.0V (T≤0℃)
2.5V (T>-0℃)
CurrentMaximum   continuous discharge230A
Maximum pulse discharge current(60s)345A
Energy densityGravimetric175Wh/kg
Volumetric383Wh/L
Temp. ConditionOperation   (Charge)0~ 60℃
Operation (Discharge)-30 ~ 60℃
Cycle Life1C/1C,   100% DOD 25℃4000   cycles
Abuse testOvercharge,   Over-discharge, Short, HeatGB/T   31485-2015
