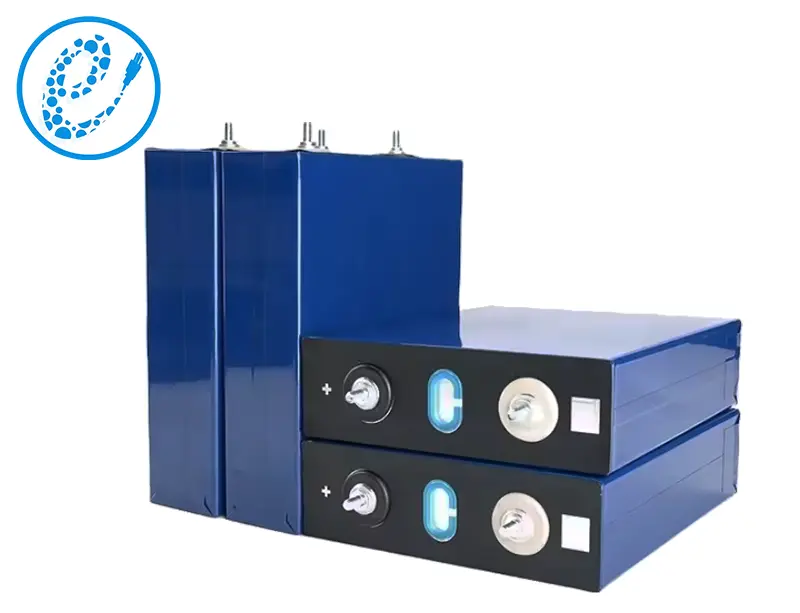

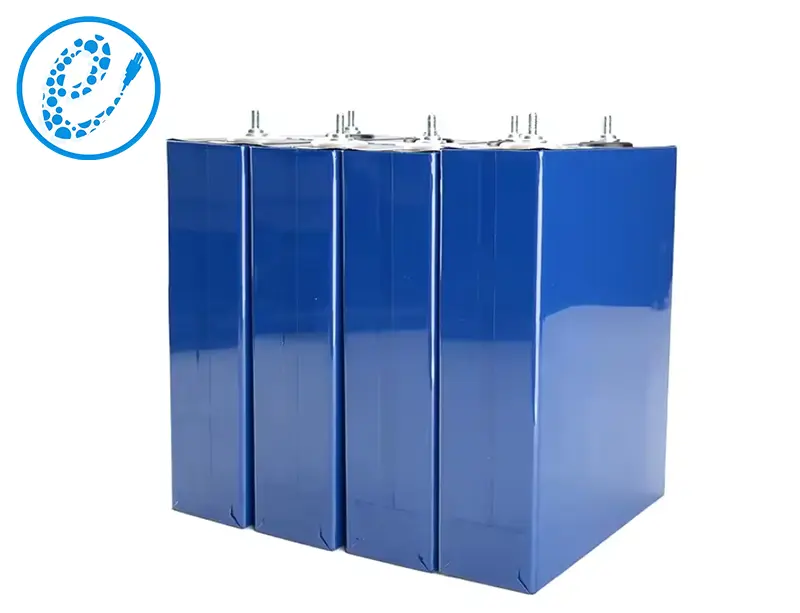

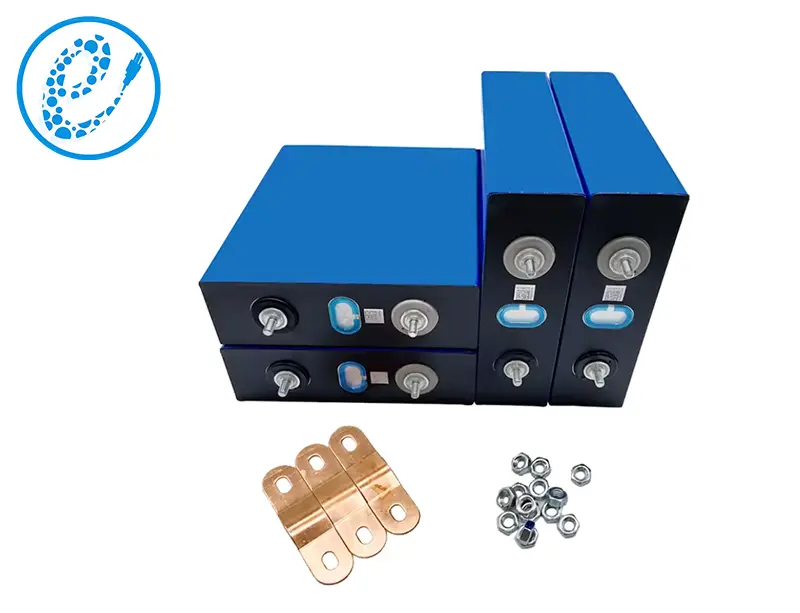

C2-LFP180W

Lithium iron phosphate batteries are capable of accepting high charging currents, allowing for rapid charging without compromising battery performance or longevity. This feature of the prismatic lifepo4 battery is particularly advantageous in applications where quick charging is essential, such as electric vehicles and portable electronics.

ItemSpecification

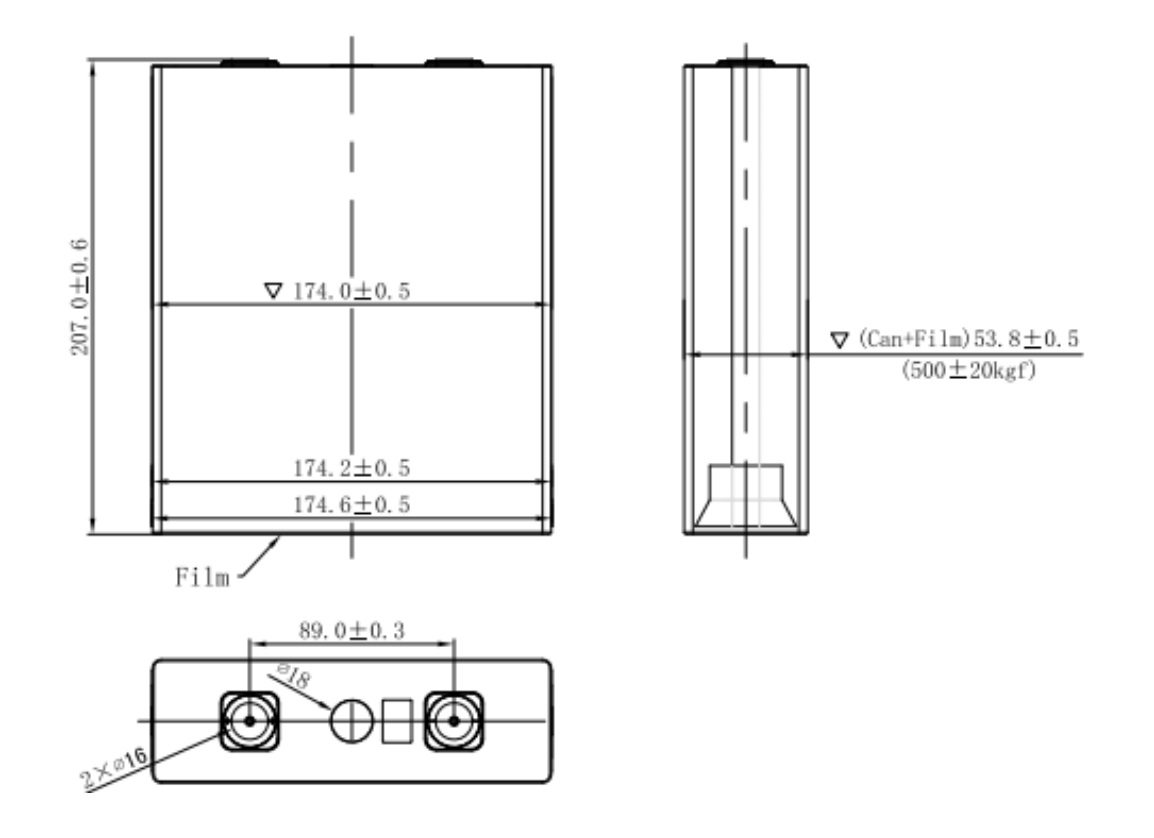

Dimension174.6*53.8*207 mm
Weight3.60±0.18 kg
Min.   capacity180Ah   @1C, 25℃ ± 2℃
Min. energy576Wh
Recommended SOC usage window10   ~ 90%
TerminalWelding Terminal
Impedance(1kHz)≤0.4mΩ
VoltageMax.3.65V
Nominal3.2V
Min.2.5V   T>0℃
    2.0V T≤0℃
CurrentMaximum   continuous charge current180A
Maximum continuous discharge current180A
Energy densityGravimetric160Wh/kg
Volumetric296Wh/L
Temp. ConditionOperation   (Charge)0~ 55℃
Operation (Discharge)-20 ~ 55℃
Cycle Life80%SOH,   25℃1500   cycles
Abuse testOvercharge,   Over-discharge, Short, HeatGB/T   31485-2015
