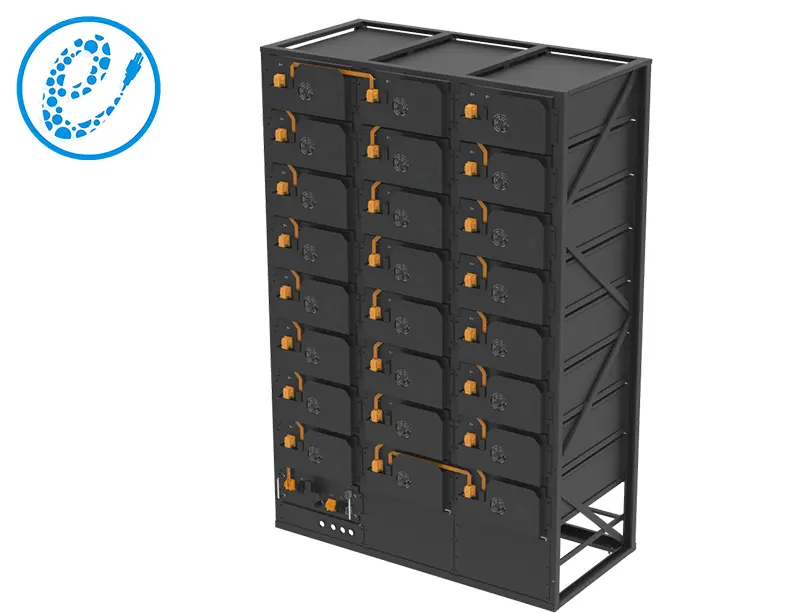

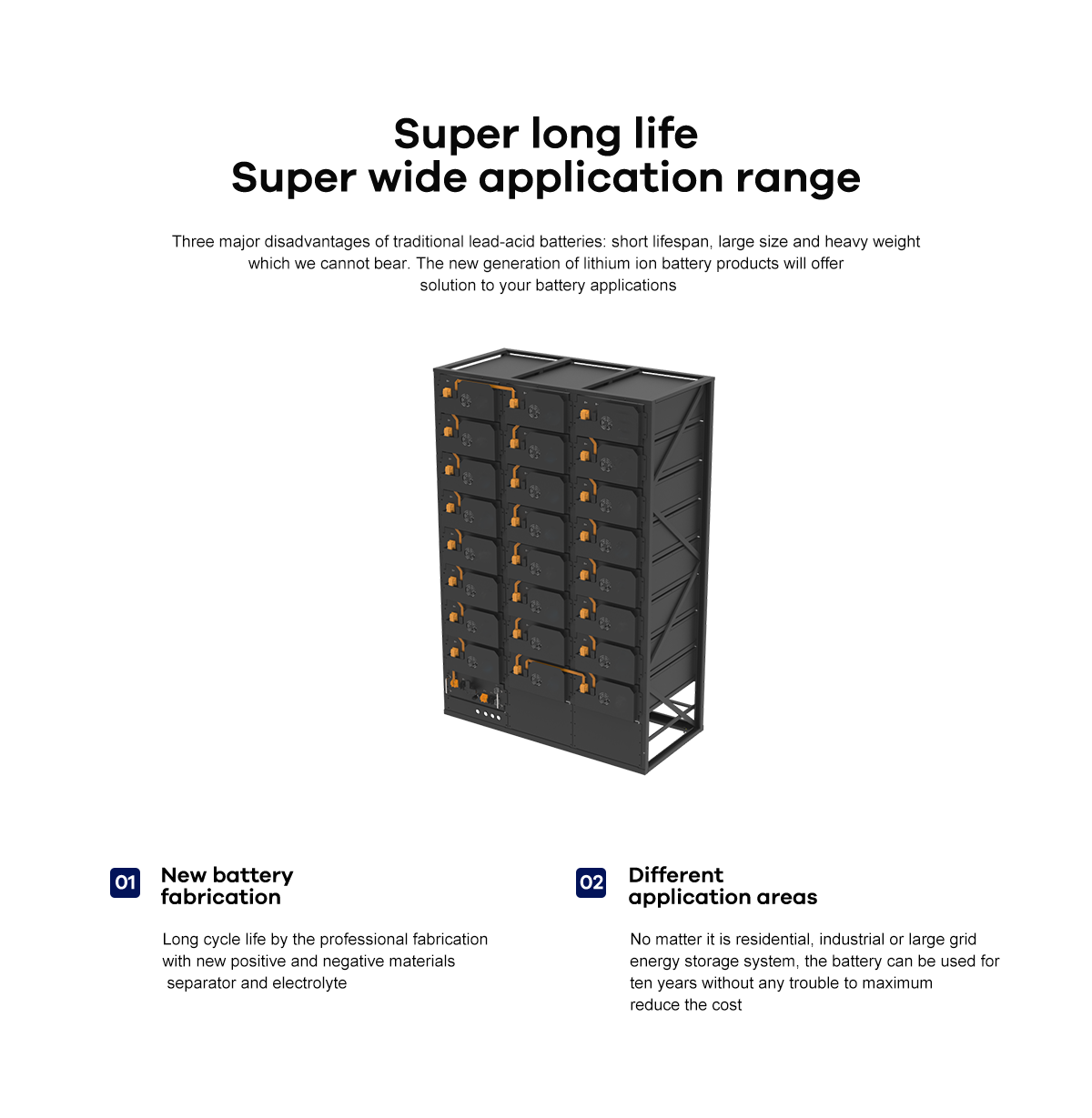

SCXXXX23-576V608A (304AH2P180S) Battery Energy Storage System has a rated energy of 350.208KWh, a rated voltage of 576V, and a rated capacity of 608Ah.This battery energy storage system is mainly used for commercial and industrial energy storage, and is designed to be portable and easy to integrate.
.png "SCXXXX23-576V608A（304AH2P180S）_(1).png")
| Item | Parameters | |
| SCXXXX23-576V608A（304AH2P180S） | Nominal Voltage | 576V |
| Rated Capacity（@ 20±5℃ 0.3C） | 608Ah | |
| Nominal Energy（@ 20±5℃ 0.3C/0.3C100%DOD） | ≈350.208KWh | |
| Rated charge | 304A | |
| Maximal Continuous Charging Current | 608A | |
| Rated discharge | 304A | |
| Maximal Continuous Discharging Current | 608A | |
| Battery Configuration | 2P180S of 3.2V280Ah cell | |
| Battery Operating Voltage Range | 450V～657V | |
| Operating Temperature Range(Charge) | 0～55℃ | |
| Operating Temperature Range(Discharge) | -30～60℃ | |
| Recommended Operating Range of SOC | 20%～100% | |
| SOC Requirement for long period idle and storage | ≈30% SOC | |
| Dimension | ≈1060mm*630mm*425mm(W*D*H) | |
| Weight | ≈2260kg | |
| Cooling method | Liquid cooling | |
.png "SCXXXX23-576V608A（304AH2P180S）_(3).png")
.png "SCXXXX23-576V608A（304AH2P180S）_(4).png")
.png "SCXXXX23-576V608A（304AH2P180S）_(5).png")
.png "SCXXXX23-576V608A（304AH2P180S）_(6).png")
.png "SCXXXX23-576V608A（304AH2P180S）_(7).png")
.png "SCXXXX23-576V608A（304AH2P180S）_(9).png")
.png "SCXXXX23-576V608A（304AH2P180S）_(10).png")
.png "SCXXXX23-576V608A（304AH2P180S）_(11).png")
