SCXXXX02-6.7MWh-1331.2V5040A(280Ah18P416S)-40GP-280Ah1P52S-8S-18P(0.5P)

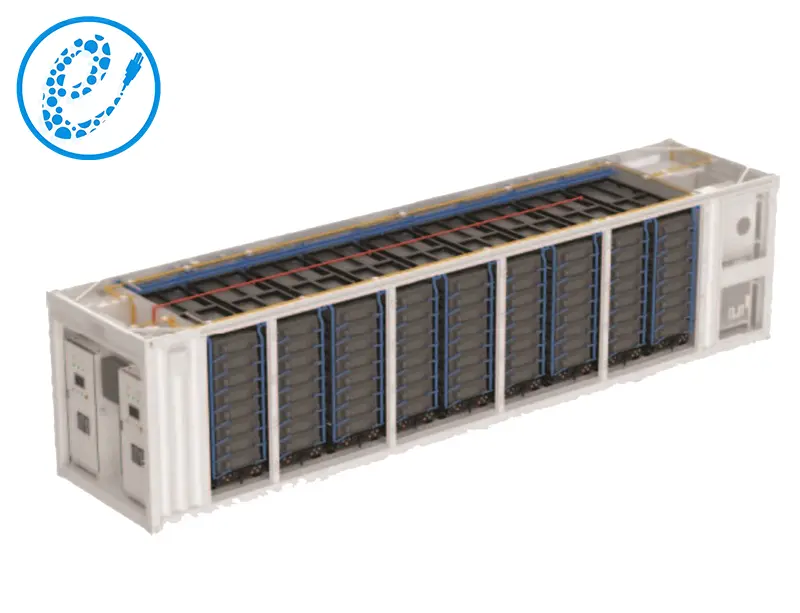

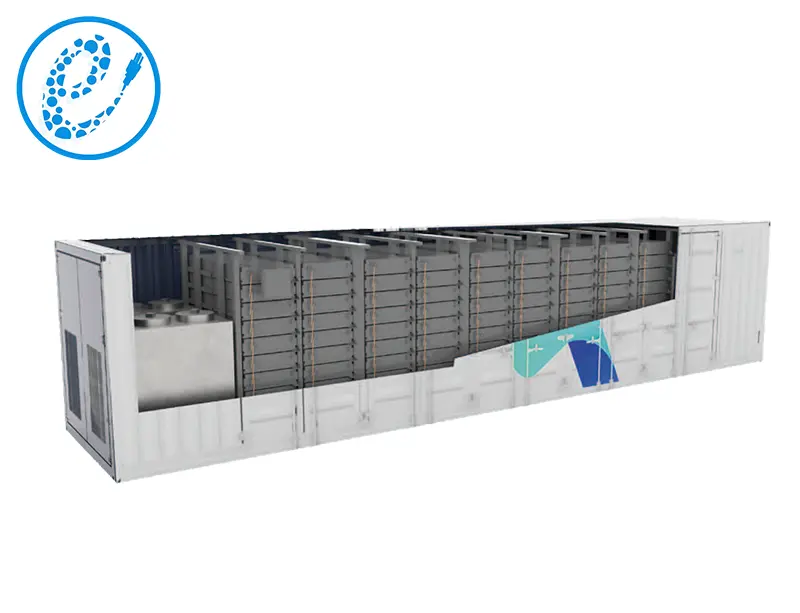

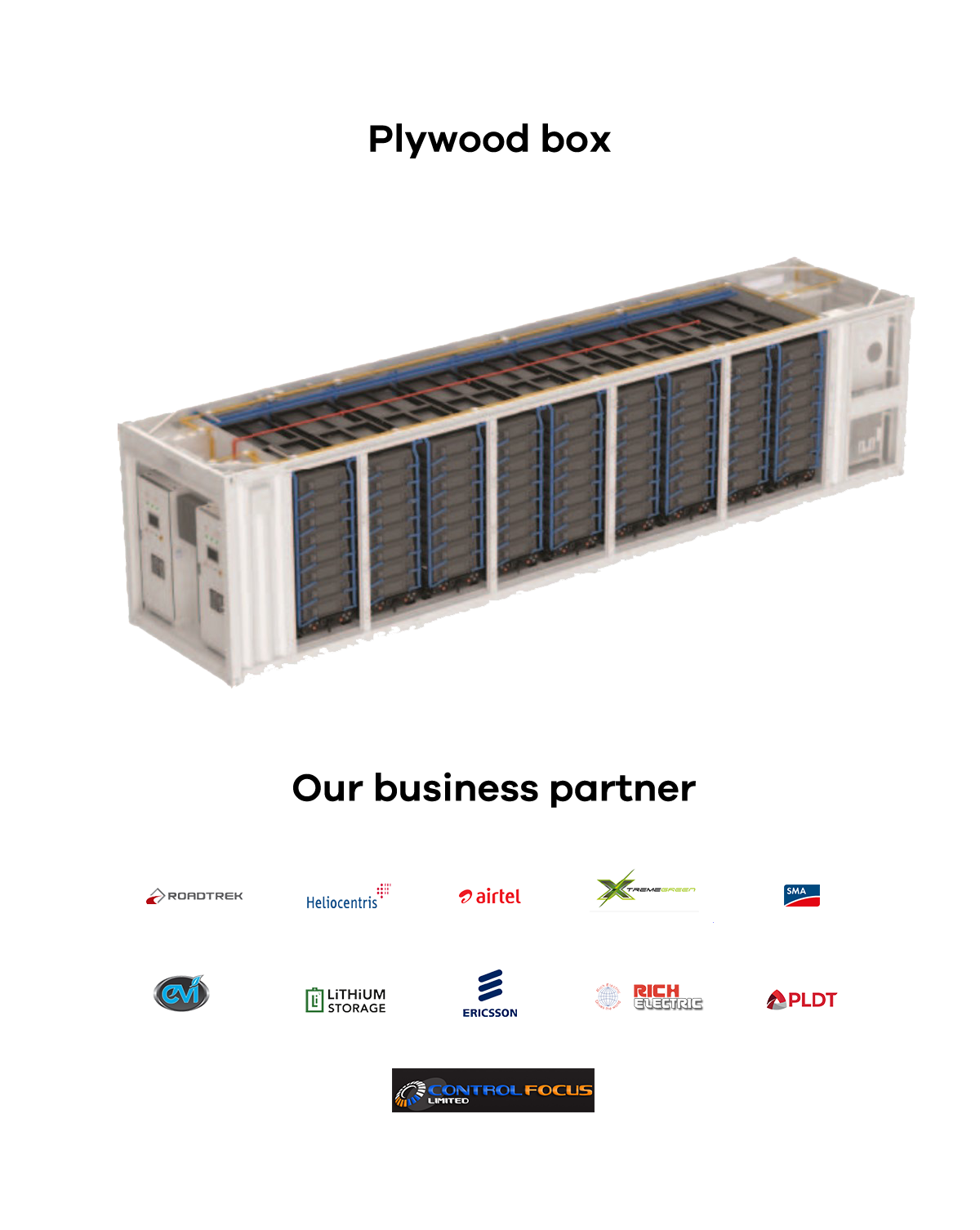

SCXXXX02-1331.2V5040A(280Ah18P416S) Battery Energy Storage System is rated up to 6709.248kWh for 40' container energy storage, providing you with a powerful and efficient energy storage solution.

SCXXXX02-1331.2V5040A(280Ah18P416S) This battery energy storage The 18P416S configuration of this battery storage system ensures a harmonious balance of power, safety and performance, guaranteeing a reliable energy supply.



No.ItemSpec.Remark
1Configuration416s18p
2Rated Energy6709.248kWh100%DOD250.5C
3Operating Voltage   Range1081.6~1497.6VFor cell 2.6V~3.6V
4Dimension12192mm×2438mm×2896mm
5Mass~70T
6Rated charge current2520(for 0.5P system)According to current   map
7Rated discharge   current2520A(for 0.5P   system)According to current   map
8Short   overload charging current
    (≤1min
5040A(for 0.5P   system)According to current   map
9Short   overload charging current
    (≤1min
5040A(for 0.5P   system)According to current   map
10Temperature range in   cabin-20~50℃
11IP level of cabinBat.   Room IP54
    Electric room IP54

12Cooling and heating   typeLiquid cooling /   heating
13Communication   agreementCAN, RS485, TCP/IP
14Environment   temperature-30~55/
15environment humidity5%~90%RH/
16Altitude≤3000m/
