  • ps050605 309 12v150a 150ah1p96s
  • ps050605 309 12v150a 150ah1p96s

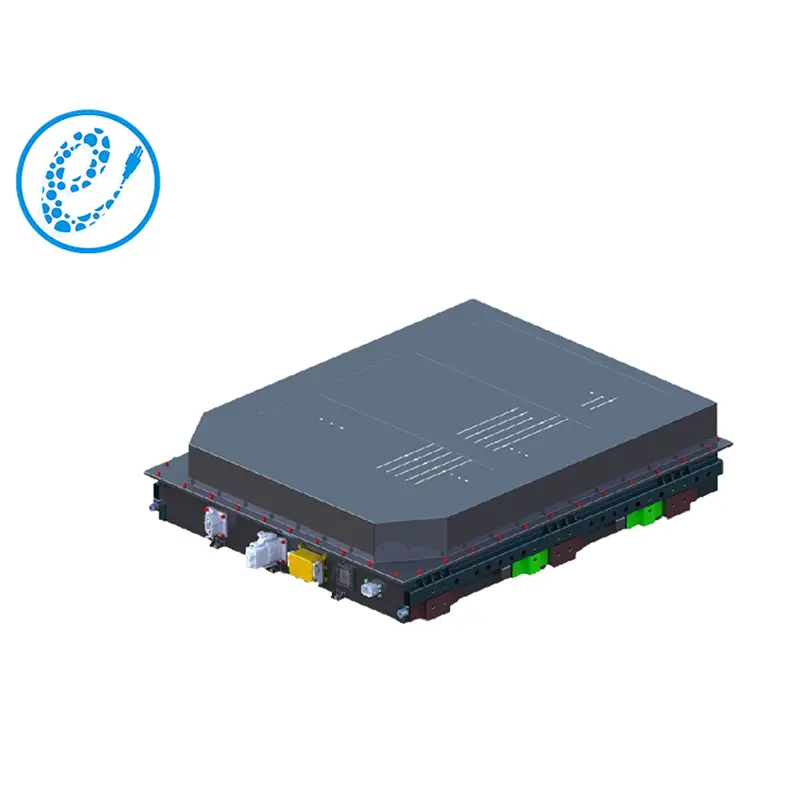

PS050605-309.12V150A (150AH1P96S) lithium battery pack is available in a 1P196S configuration with an energy rating of 40.368kwh and a voltage rating of 309.12V, which is a battery box specially developed for mini-van and medium-sized van.

Whether you are working on renewable energy projects, electric vehicle technology, or any other application that requires a reliable and durable power source, the PS050605-309.12V150A (150AH1P96S) battery pack will meet your needs with superior performance.

At EcoPower, we are driven by our dedication to sustainability. This kind of battery pack exemplifies this commitment, providing you with an eco-friendly energy storage solution that reduces environmental impact.

No.ItemsEP-PS050605-LFP150Ah   STADARD PACKNote
1Nominal   voltage(V)309.12312.34315.56318.78
2Operating   voltage(V)  min240242.5245247.5

Cell Configuration

5Nominal   energyKWh 40.36846.85147.33447.81725±2
6Nominal   capacity(Ah)15025±2
7Maximum   continuous charge currentA15025±2
8Maximum   continuous discharge currentA15025±2
9Shipping   consistencymv30Voltage   difference between cell 30mV
10SOC   operating range%20~100
11Insulation   requirements(MΩ)≥20500V   DCHigh voltage output to   battery  shell, at the normal   temperature and humidity
12 cooling methodNatural   cooling
13Shipping   capacity ≈30%SOC   is consistency in the same batch
14Dimension   L (mm)1143
Dimension B (mm)890
Dimension H (mm)245

The battery box is currently assembled with 150Ah cells, which is a battery box specially developed for mini-van and medium-sized van.
