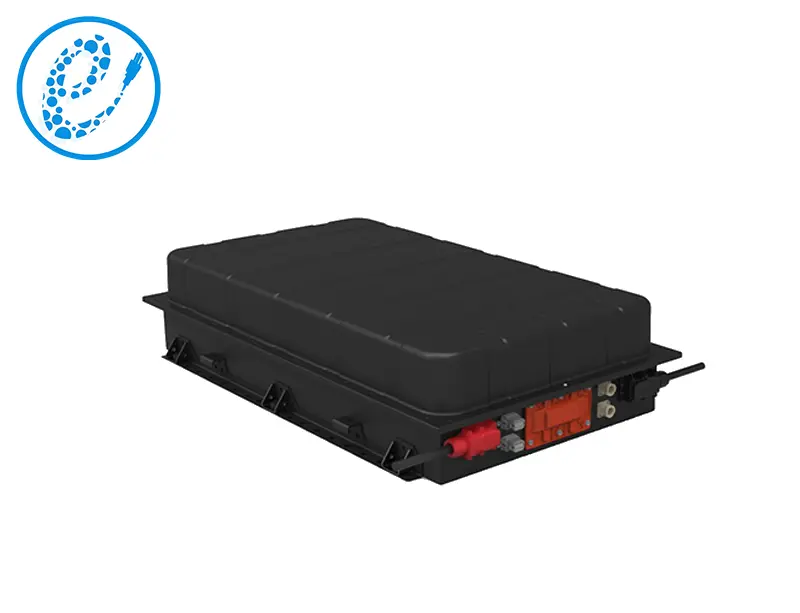

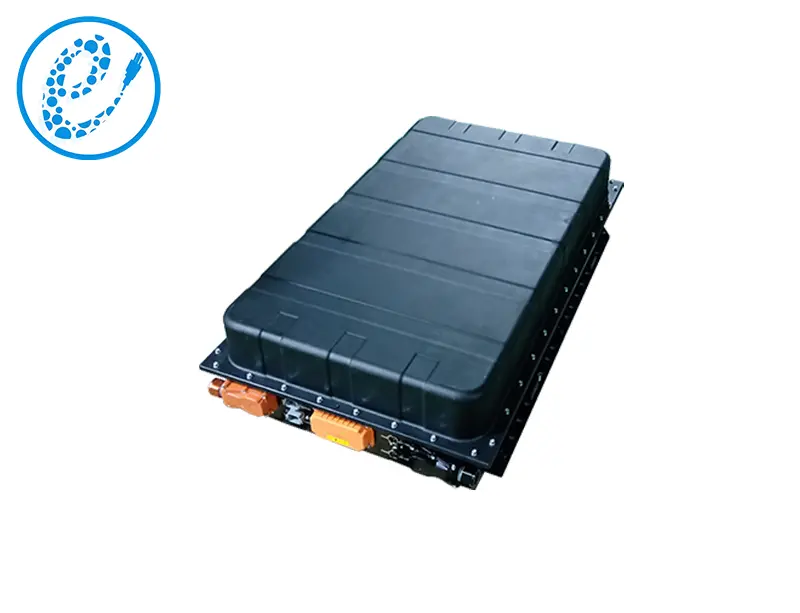

PC132902-154.56V206A (206Ah1P48S) This battery features a 206Ah rated capacity and 154.56V rated voltage configuration. The internal pack eliminates or reduces fasteners such as end plates, side plates, and screws used to secure the module for assembly, improving volume utilisation. And because of the reduction in parts, the weight is also reduced, resulting in an increase in mass energy density.
| No. | Items | EP-LFP 280Ah STADARD PACK | Note | |
| PC132902-154.56V206A | ||||
| 206AH1P48S | ||||
| 1 | Nominal voltage(V) | 154.56 | ||
| 2 | Operating voltage(V) | min | 120 | |
| 3 | max | 175.2 | ||
| 4 | Cell Configuration | 1P48S | ||
| 5 | Nominal energy（KWh ） | 31.84 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 206 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 206 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 206 | 25±2℃ | |
| 9 | SOC operating range（%） | 20~100 | ||
| 10 | Insulation requirements(MΩ) | ≥20 | Battery pack total positive and negative to ground | |
| 11 | cooling method | Natural Cooling | ||
| 12 | Weight（kg） | 225 | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 1060 | ||
| Dimension B (mm) | 630 | |||
| Dimension H (mm) | 240 | |||
.png "pc132902-154_(3).png")
.png "pc132902-154_(4).png")
.png "pc132902-154_(5).png")
.png "pc132902-154_(6).png")
.png "pc132902-154_(7).png")
.png "pc132902-154_(9).png")
.png "pc132902-154_(10).png")
.png "pc132902-154_(11).png")
