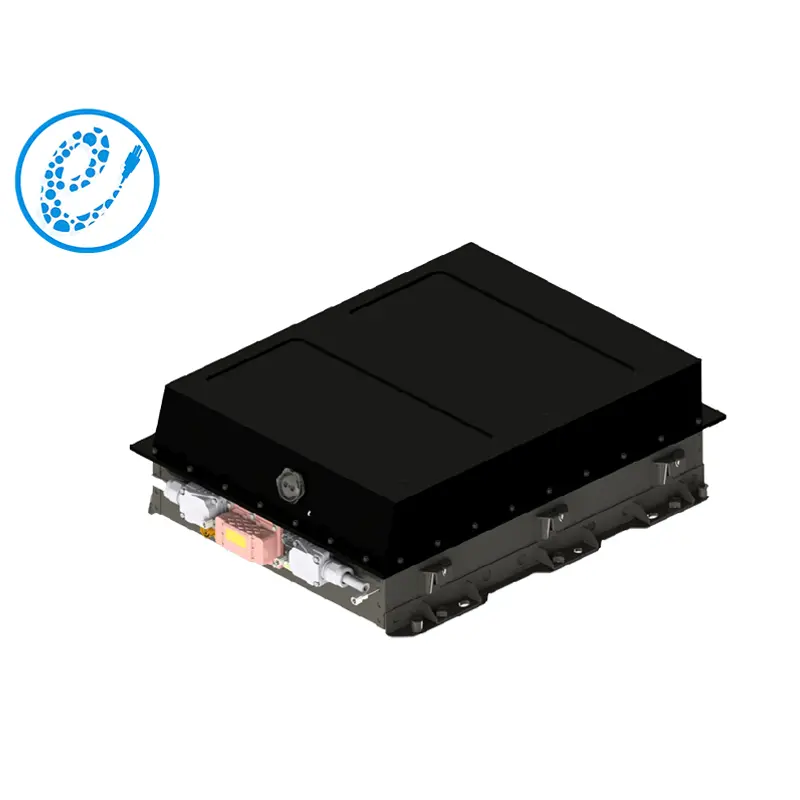

The PS050605-77.28V302A (302AH1P24S) is available in a 1P24S configuration consisting of a parallel battery pack (1P) and 24 series battery packs (24S). This configuration ensures a harmonious balance of power, safety and performance, guaranteeing a reliable energy supply.
The PS050605-77.28V302A (77.28AH1P24S) battery is designed to meet a wide range of applications, from automotive systems, standby power solutions, marine equipment to remote monitoring devices. Its versatility makes it the first choice for a variety of consumer and industrial needs.
| No. | Items | EP-LFP 302Ah STADARD PACK | Note | |
| PS050605-77.28V302A | ||||
| 302AH1P24S | ||||
| 1 | Nominal voltage(V) | 77.28 | ||
| 2 | Operating voltage(V) | min | 60 | |
| 3 | max | 87.6 | ||
| 4 | Cell Configuration | 1P24S | ||
| 5 | Nominal energy（KWh ） | 23.34 | 25±2℃ | |
| 6 | Nominal capacity(Ah) | 302 | 25±2℃ | |
| 7 | Maximum continuous charge current（A） | 302 | 25±2℃ | |
| 8 | Maximum continuous discharge current（A） | 302 | 25±2℃ | |
| 9 | Shipping consistency（mv） | 30 | Voltage difference between cell ＜30mV | |
| 10 | SOC operating range（%） | 20~100 | ||
| 11 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery shell, at the normal temperature and humidity | |
| 12 | cooling method | Natural cooling | ||
| 13 | Shipping capacity | ≈30% | SOC is consistency in the same batch | |
| 14 | Dimension L (mm) | 805 | ||
| Dimension B (mm) | 640 | |||
| Dimension H (mm) | 240 | |||

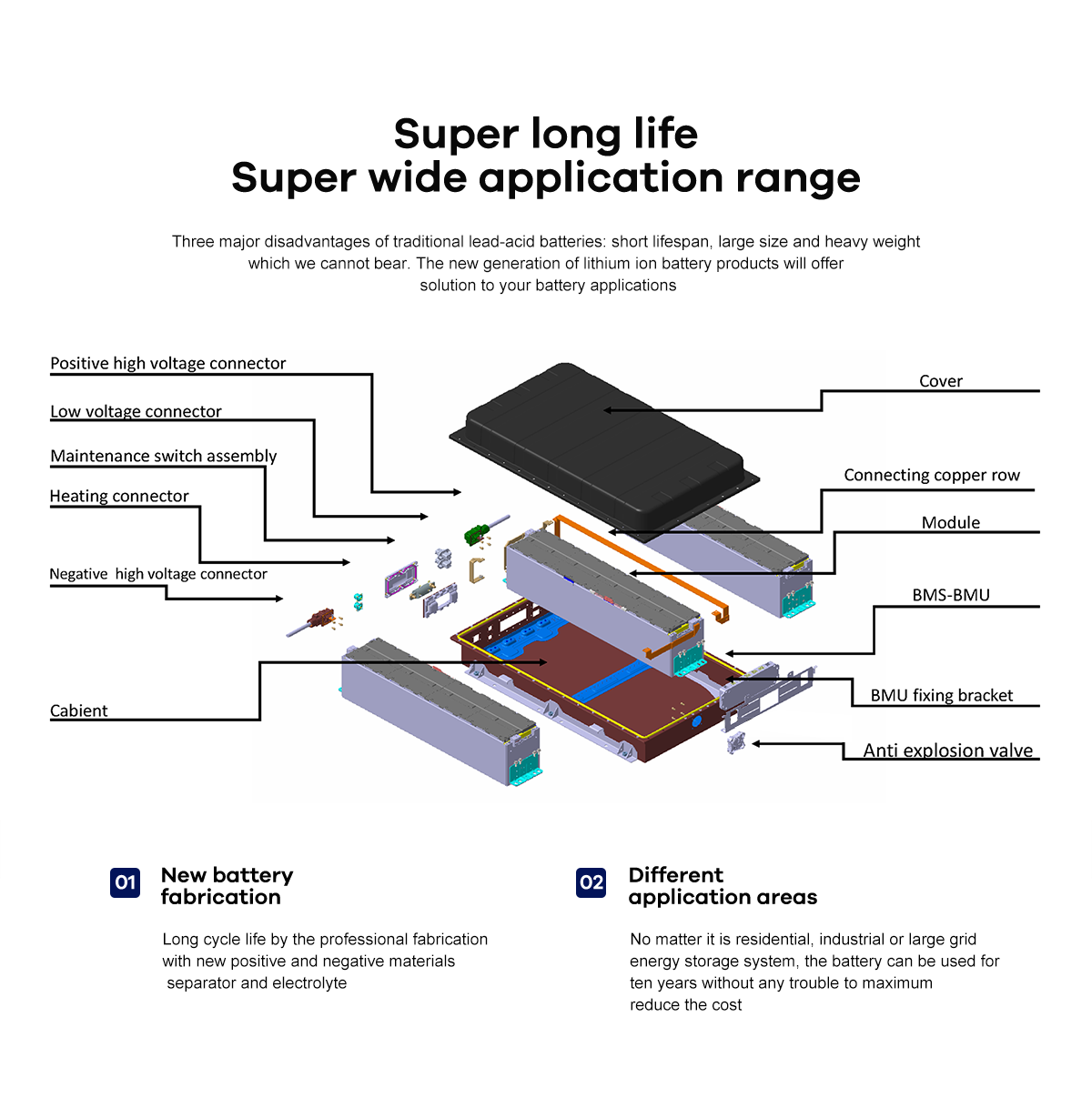

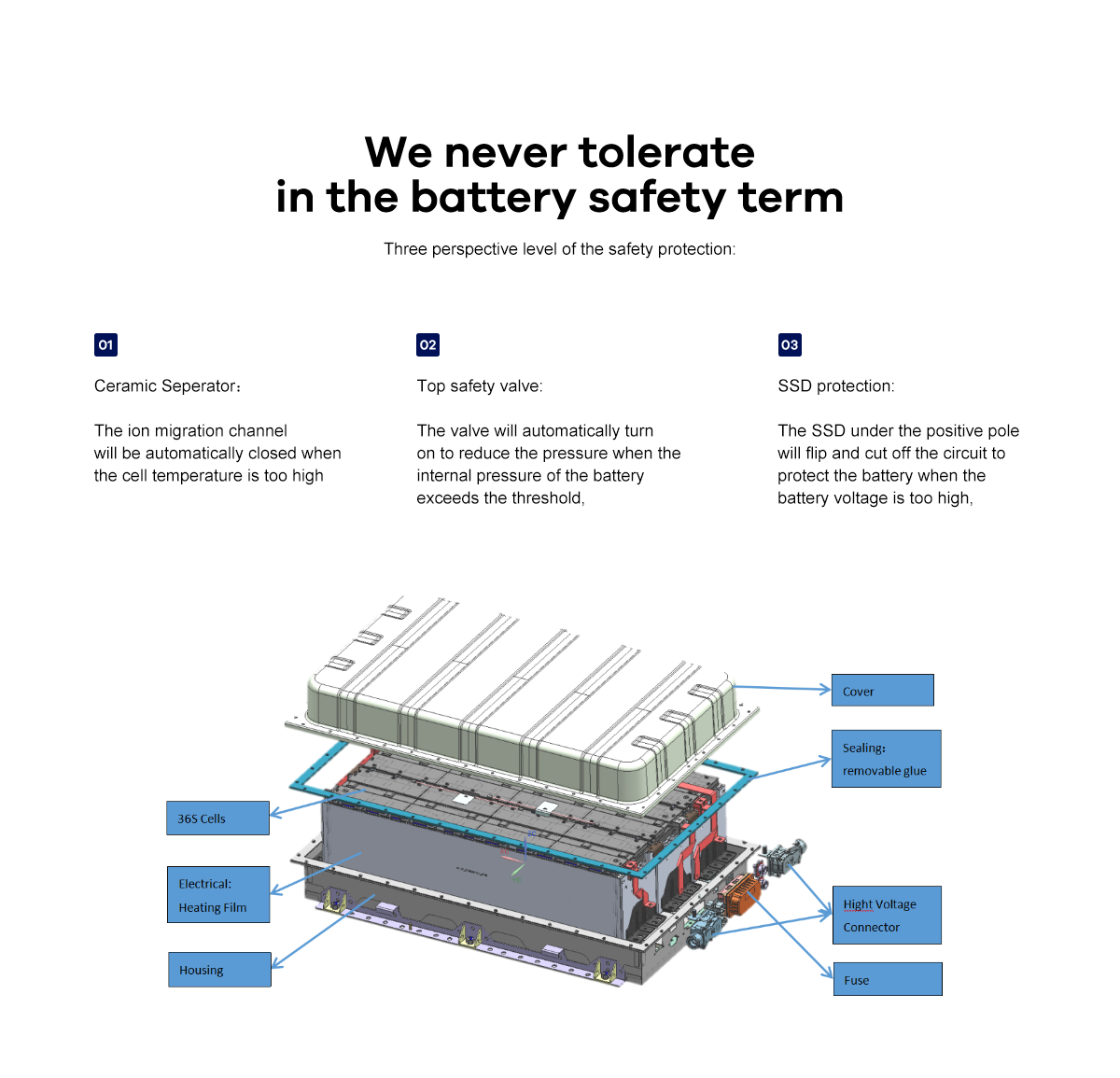

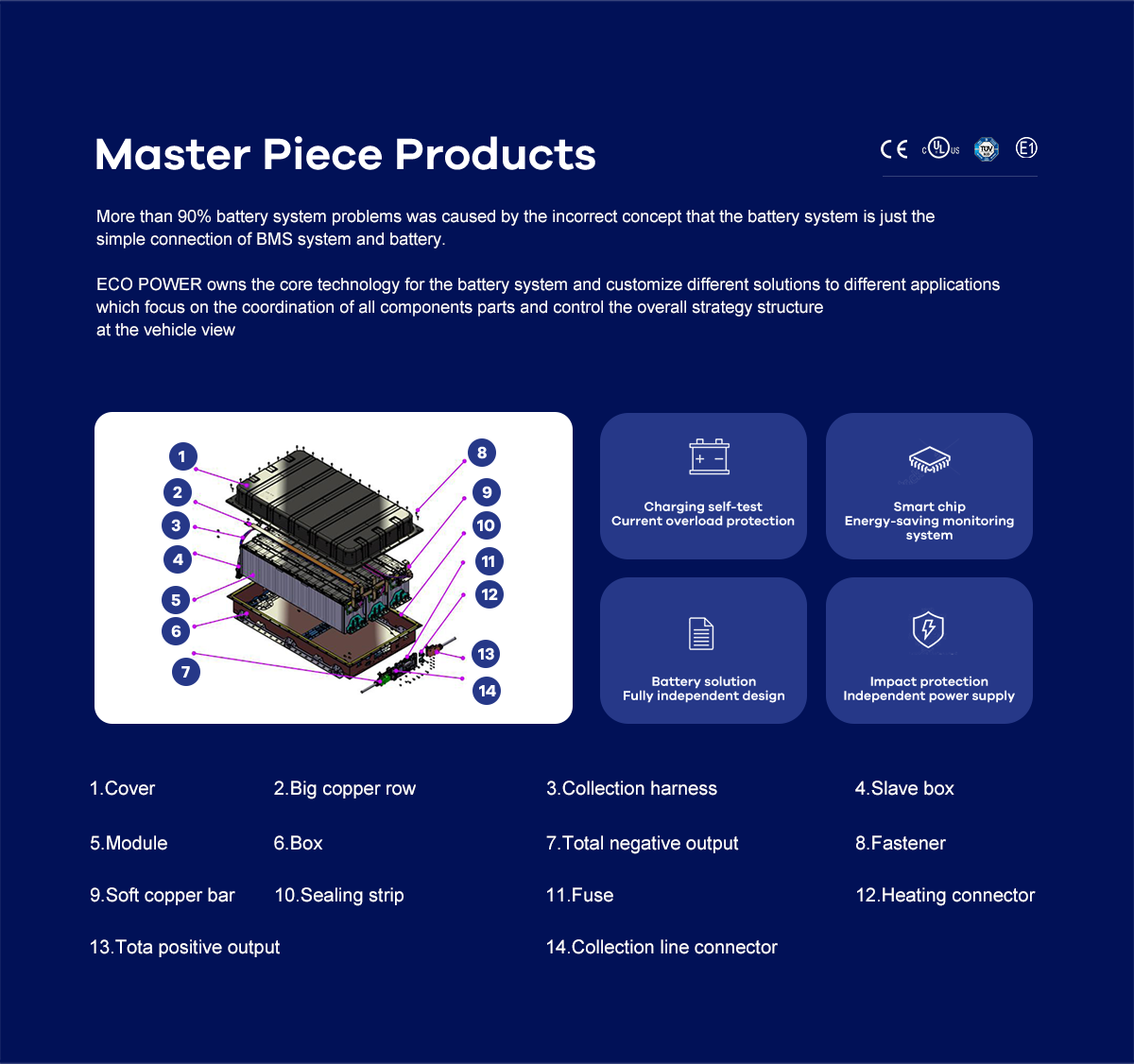

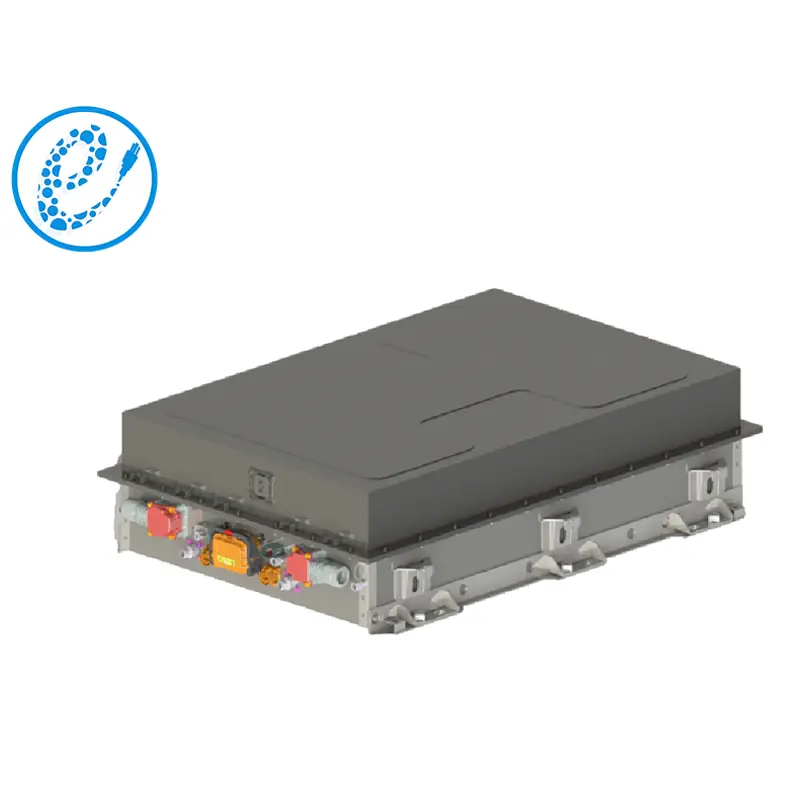

The battery box is currently assembled with a full range of VDA series cells, and is a battery box developed specifically for special models such as sightseeing cars and field cars.
.png "ps050605_(1).png")
.png "ps050605_(2).png")
.png "ps050605_(3).png")
.png "ps050605_(4).png")
.png "ps050605_(5).png")
.png "ps050605_(6).png")
.png "ps050605_(7).png")
