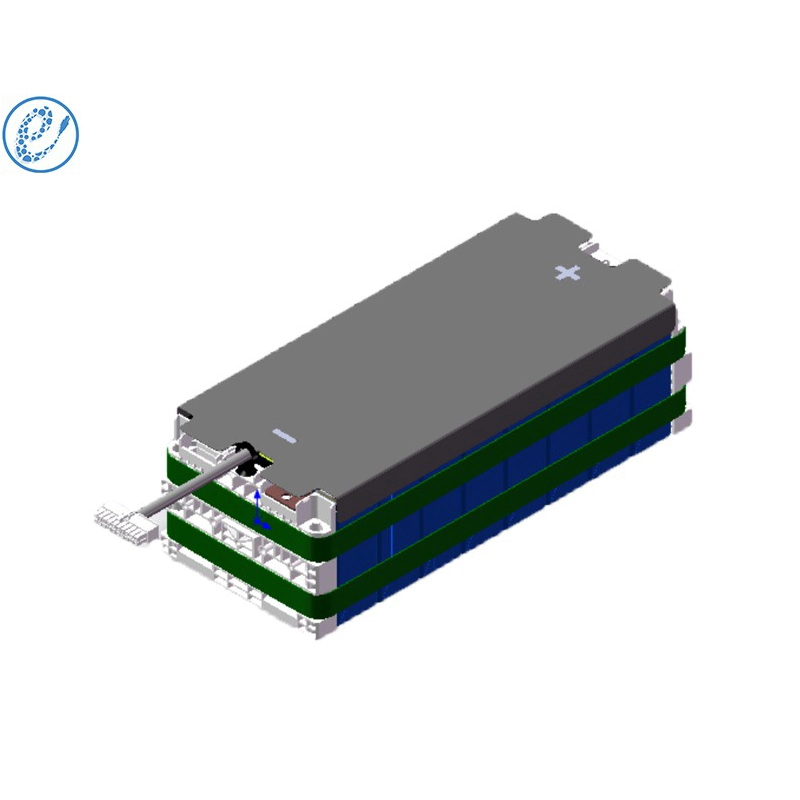

MS0505-25.6V50A-(50AH 1P8S) module adopts 1P8S configuration, the internal rated voltage reaches 25.6V, and the rated capacity is 50Ah. The sturdy case design makes it a powerful, reliable and durable battery module; it is a good choice to meet the needs of power storage.
| No. | Items | MS0505-25.6V50A | Note | |
| 50Ah1P8S | ||||
| 1 | Nominal voltage(V) | 25.6 | ||
| 2 | Operating voltage(V) | min | 20 | |
| 3 | max | 29.2 | ||
| 4 | Nominal capacity (Ah) | 50 | 1C, 25℃ | |
| 5 | Nominal energy (KWh) | 1.280 | 1C, 25℃ | |
| 7 | Cell Configuration | 1P8S | ||
| 8 | End of life residual capacity (Ah) | 40 | ||
| 9 | Module weight (Kg) | 15 | ||
| 10 | Maximum continuous charge current (A) | ≤50 | ||
| 11 | Maximum continuous discharge current (A) | ≤50 | ||
| 12 | Maximum pulse discharge current (≤10s) | ≤100 | ||
| 13 | SOC operating range (%) | 20~100 | ||
| 14 | Insulation requirements(MΩ) | ≥20 | 500V DC. High voltage output to battery module shell, at the normal temperature and humidity | |
| 15 | Module cooling method | Natural cooling | ||
| 16 | Module heating film | No | ||
| 17 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |

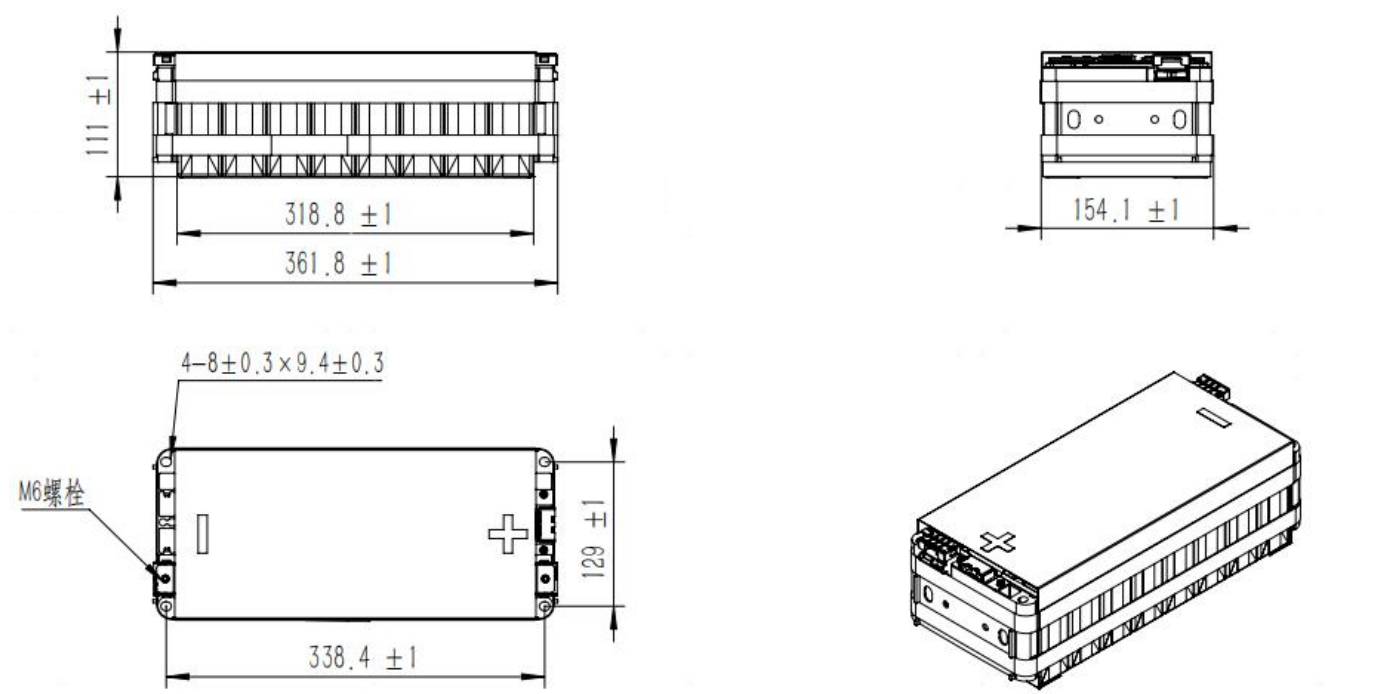

| 18 | Dimension L (mm) | 361.8 | ||
| Dimension B (mm) | 154.1 | |||
| Dimension H (mm) | 111 | |||
