SS130502-768V280A(280AH1P240S)-Liquid Cooling-AC+DC-100KW+215.04KWh

Name: SS130502-768V280A(280AH1P240S)-Liquid Cooling-AC+DC-100KW+215.04KWh
Brand: Eco Power Group
Availability: InStock
Rating: 4.4 (5 reviews)

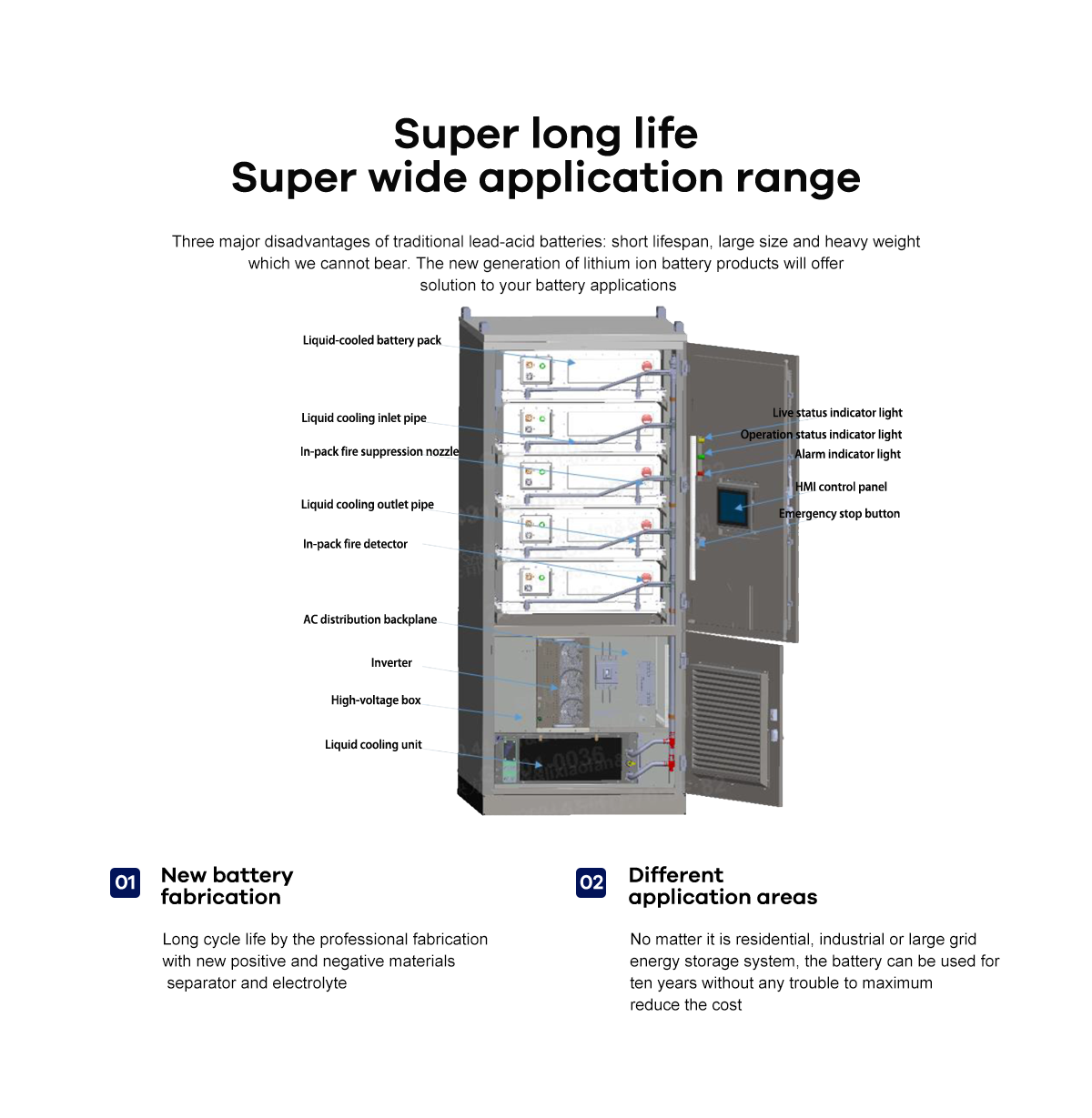

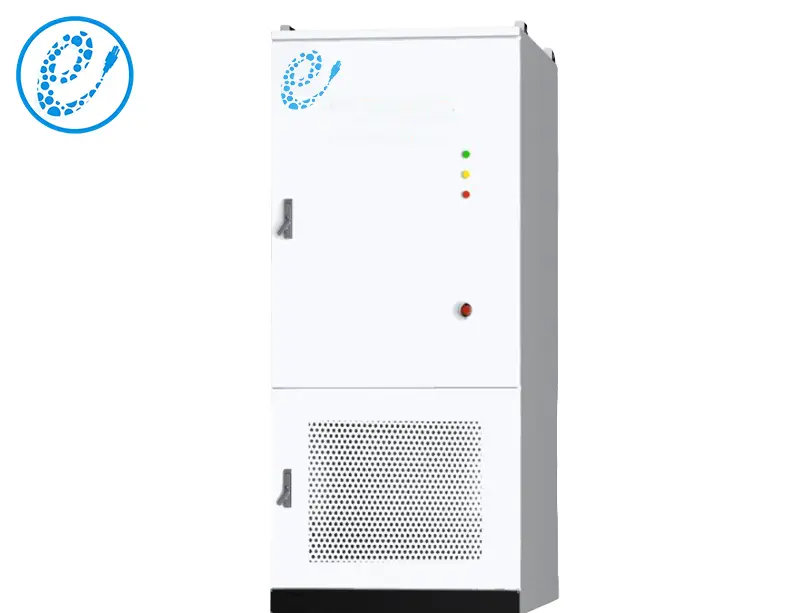

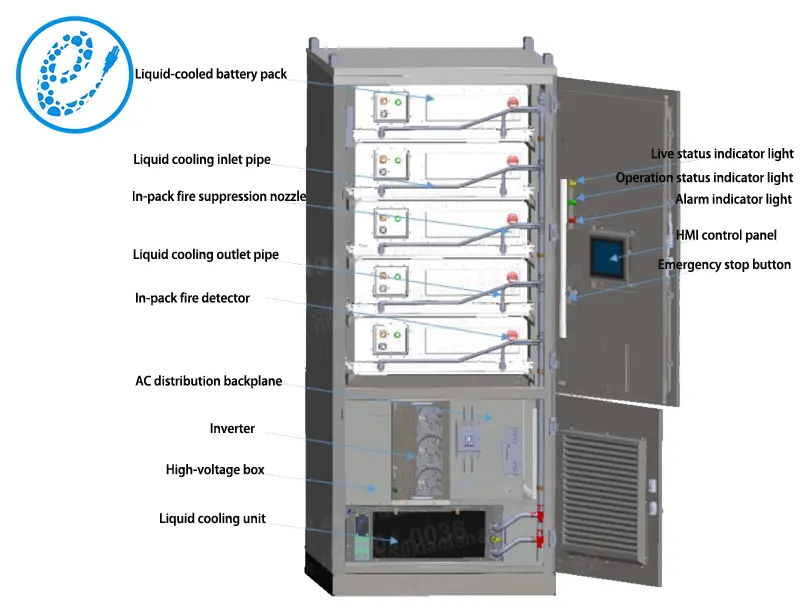

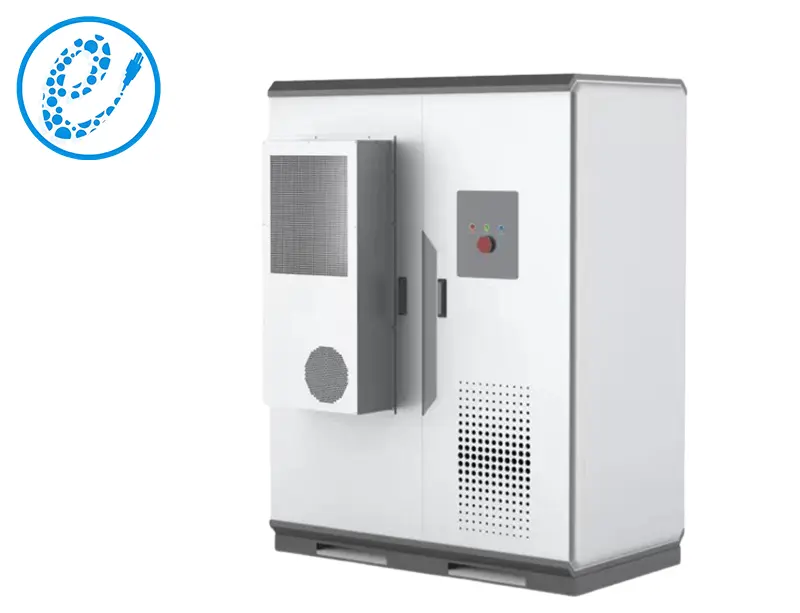

This integrated energy storage cabinet combines LiFePO₄ batteries, BMS, liquid cooling, fire suppression, monitoring, PCS, and auxiliary systems in an outdoor design. It offers 215.04 kWh capacity, 100 kW output power, and AC380V voltage, with features like off-grid backup, peak shaving, power quality improvement, and anti-backflow monitoring. The system ensures safety and stability with independent distribution, temperature control, fire alarms, and grounding systems, promoting efficient and green energy use.

Get Li Ion Price


Model	SS130502-215KWh-768V280A(280AH1P240S)	Remarks
DC side
Rated energy storage capacity of the battery	215kWh
System rated voltage	768V
System voltage range	672V~864V
Battery type	Lithium iron phosphate battery (LFP)
Series and parallel connection of battery packs	1P48S5S
Maximum charging and discharging current	160A
AC side
Rated AC power	100kW
Rated AC current	167A
Rated AC voltage	400V，3W+N+PE
Rated AC frequency	50/60Hz
Total harmonic distortion rate of current THDI	<3% (rated power)
Total harmonic distortion rate of voltage THDU	<3% (linear load)
General parameters
Protection level	IP54
Local control display	8.4-inch touch all-in-one machine (including 4G)
relative humidity	0~95% (non condensing)
noise	Less than 78dB
ambient temperature	-25 ℃~60 ℃
ambient temperature	(Derating above 45 ℃)
Cooling method	Intelligent liquid cooling, 3kW
Altitude	3000m
Altitude	(Derating over 2000m)
BMS communication	Ethernet/RS485/CAN
EMS communication	Ethernet/RS485/CAN
Size (W * D * H)	100013502300
Weight (approximately)	2.8T
