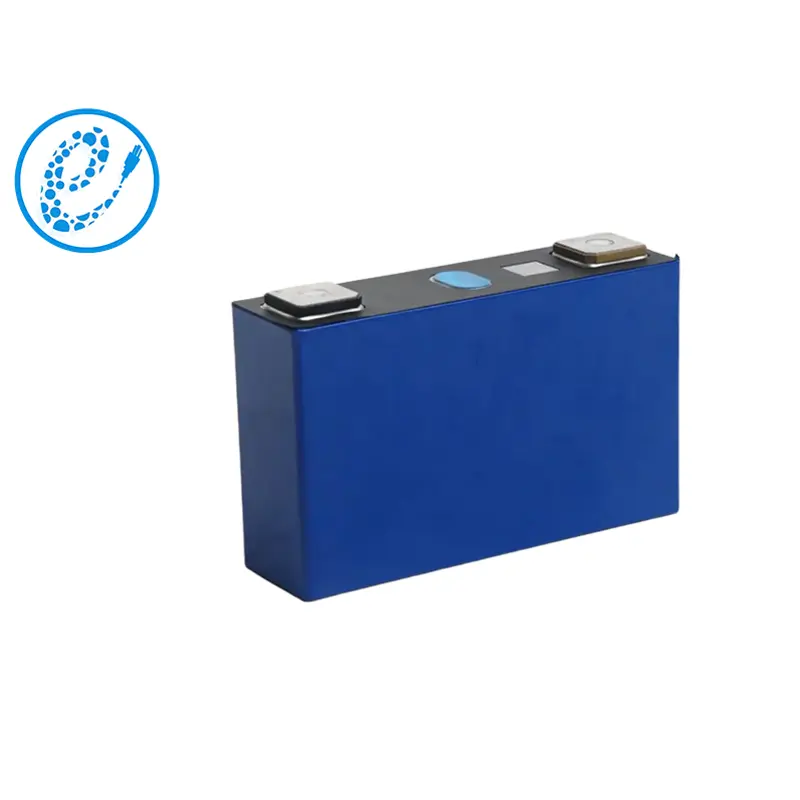

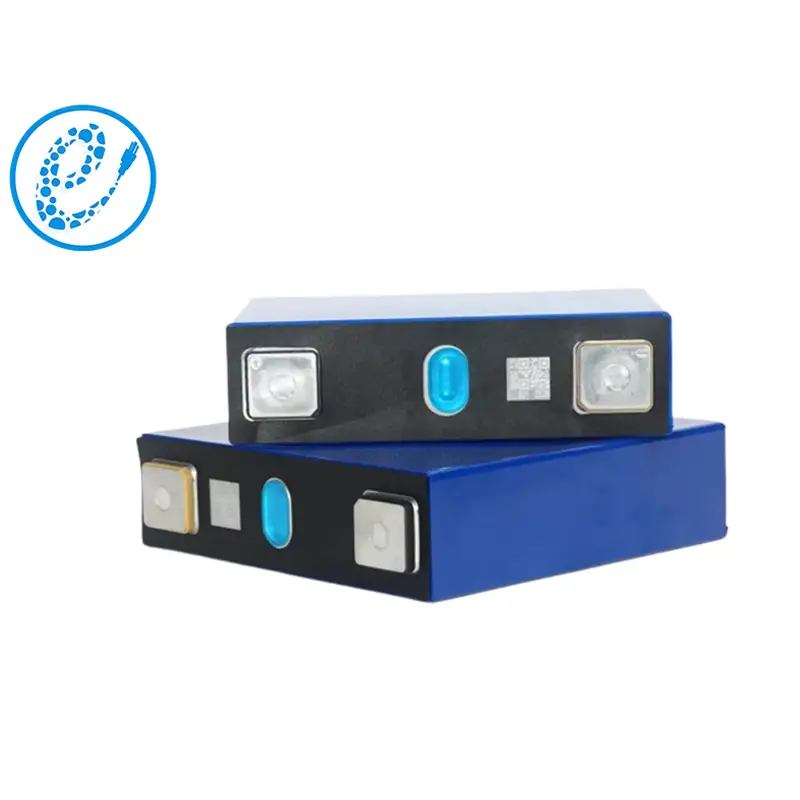

The C23-NCM117WN battery provides a substantial amount of power in a compact form factor. This translates to longer-lasting energy storage for various applications.
The NCM cell features the latest Nickel-Cobalt-Manganese (NCM) technology, ensuring superior performance, increased cycle life, and enhanced safety.
At EcoPower, environmental sustainability is at the core of our values. The NCM117WN battery is engineered with eco-friendly materials and processes, minimizing its carbon footprint and contributing to a greener planet.
| Item | Specification | |

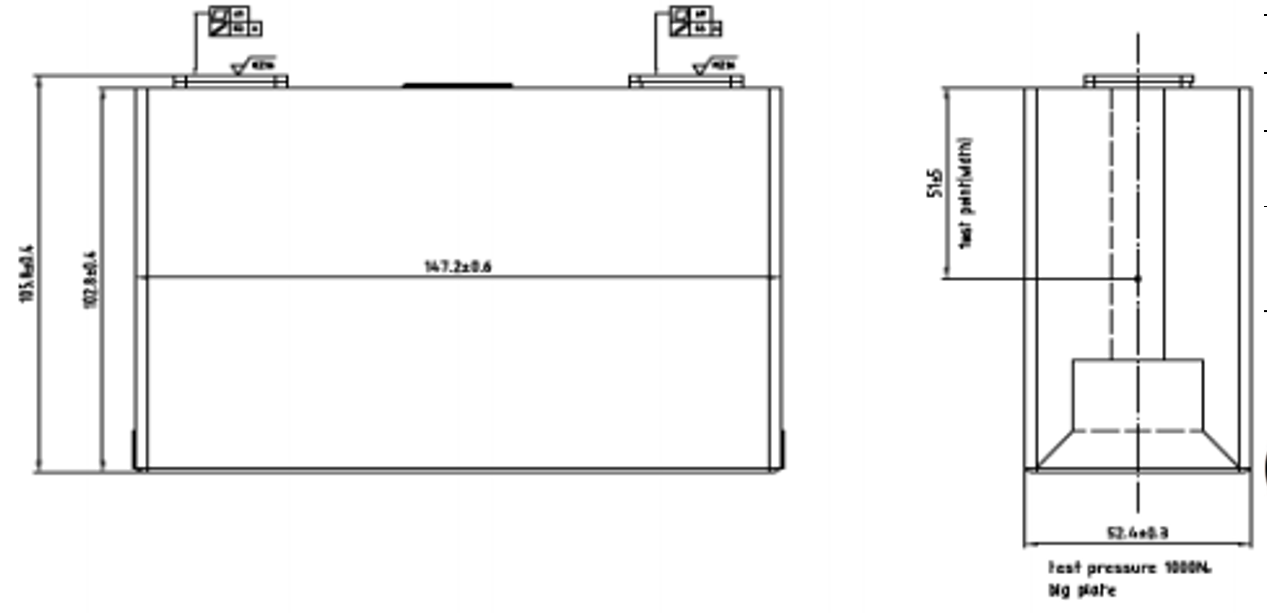

| Dimension | 52.4mm *147.2mm *105.8mm | |
| Weight | 1790g | |
| Min. capacity | 117Ah (1/3C) @ 25℃ | |
| Min. energy | 432.9Wh (1/3C) @ 25℃ | |
| Recommended SOC usage window | 10 ~ 90% | |

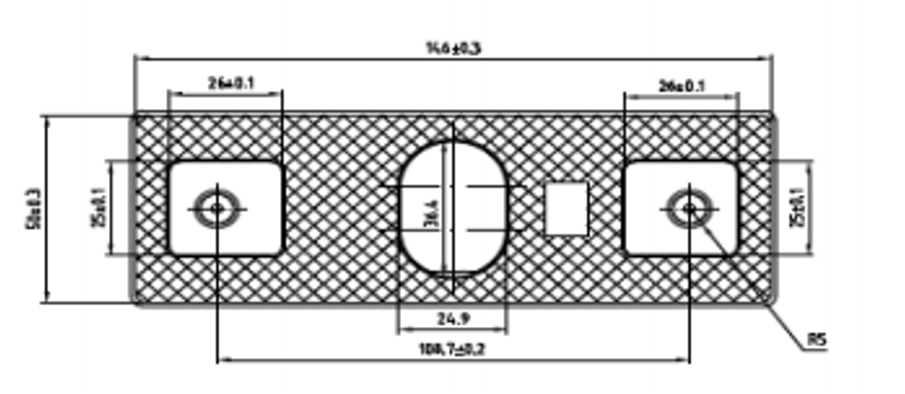

| Terminal | Welding | |
| Impedance（1kHz） | ≤0.45 mΩ | |
| Voltage | Max. | 4.4V |
| Nominal | 3.7V | |
| Min. | 2.8V(0℃<T≤55℃) 2.5V(-20℃<T≤0℃) 2.1V(-30℃≤T≤-20℃) | |
| Current | Current of standard charge | 39A |
| Maximum continuous discharge | 234A | |
| Energy density | Gravimetric | 241Wh/Kg |
| Volumetric | 530Wh/L | |
| Temp. Condition | Operation (Charge) | -20℃~55℃ |
| Operation (Discharge) | -30℃~55℃ | |
| Cycle Life | 2C/1C, 92% DOD 25℃ | 2000 cycles |
| Abuse test | Overcharge, Over-discharge, Short, Heat | GB/T 31485-2015 |
