As global electrification accelerates—from electric vehicles to energy storage systems—the battery module has become a critical building block in modern power systems. When you're working with a battery module, understanding how modules function is essential for optimizing performance, safety, and scalability.

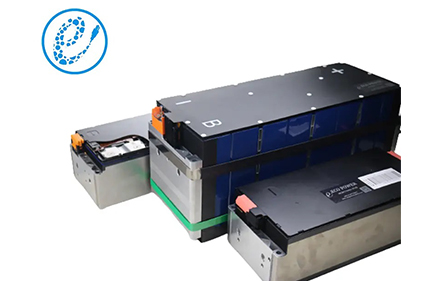

A battery module is a semi-finished energy storage unit composed of multiple individual battery cells connected in series and/or parallel configurations. It sits between a battery cell and a full battery pack.
Battery Cell → Battery Module → Battery Pack
Each module is designed to:
Increase voltage and capacity
Improve safety and thermal stability
Enable flexible system design
Unlike a single cell, a lithium ion battery module integrates mechanical structure, electrical connections, and thermal management into a compact unit.
According to industry manufacturing processes, modules are formed after cell production and testing, where cells are grouped based on consistent performance parameters such as voltage and resistance.
Battery modules play a vital role in scaling energy storage systems. Their primary uses include:
Modules are combined into packs to power EVs, determining driving range, safety, and efficiency.
Used in solar and grid storage to store renewable energy.
Provide reliable backup power in critical infrastructure.
Used in high-capacity applications like laptops, power tools, and drones.
Enable modular design and scalability
Simplify maintenance and replacement
Improve heat dissipation and safety
A high-quality lithium battery module consists of multiple integrated components:
| Component | Function | Importance |
|---|---|---|
| Battery Cells | Store and release energy | Core energy unit |
| Busbars | Conduct electricity between cells | Ensure stable current flow |
| BMS (Battery Management System) | Monitors voltage, temperature, safety | Prevents failure |
| Thermal Management System | Controls heat | Extends lifespan |
| Mechanical Housing | Protects cells | Structural integrity |
| Insulation Materials | Prevent short circuits | Safety enhancement |
A battery module is not just a simple grouping of cells—it is a highly engineered system integrating electrical, thermal, and mechanical design.
Battery pack structures further integrate modules into a complete system with protective casings and electrical systems .
The battery module assembly process is one of the most critical steps in lithium battery manufacturing.
Cells are tested and grouped based on:
Capacity
Voltage
Internal resistance
This ensures uniform performance.
Cells are connected using:
Laser welding
Ultrasonic welding
Busbars
Cells are fixed into frames or brackets
Mechanical stability is ensured
The Battery Management System is installed to:
Monitor performance
Prevent overcharge/over-discharge
Cooling solutions are added:
Air cooling
Liquid cooling (for EV applications)
Final checks include:
Electrical performance
Safety testing
Structural integrity
This module-level assembly occurs after cell formation and before final pack integration .
Based on the product reference:
Key Features of a High-Quality Battery Module:
High energy density lithium-ion cells
Advanced BMS integration
Modular and scalable design
Strong mechanical casing
Optimized thermal performance
These modules are designed for:
EV applications
Energy storage systems
Industrial power solutions
Competitive Advantage:
Customizable configurations
High cycle life
Enhanced safety architecture
Battery modules can be categorized based on several factors:
Lithium-ion (most common)
Lithium iron phosphate (LFP)
Nickel manganese cobalt (NMC)
Cylindrical cell modules
Prismatic cell modules
Pouch cell modules
EV battery modules
Energy storage modules
Portable power modules
| Feature | Battery Module | Battery Pack |
|---|---|---|
| Composition | Group of cells | Group of modules |
| Complexity | Medium | High |
| Function | Energy unit | Complete system |
| Components | Cells + BMS + structure | Modules + cooling + enclosure |
| Use | Building block | Final application |
Modules can be combined to meet different energy requirements.
Integrated BMS and thermal systems reduce risks.
Faulty modules can be replaced without replacing the entire pack.
Balanced cells improve efficiency and lifespan.
Adaptable to various industries and applications.
A battery module is a group of connected cells, while a battery pack consists of multiple modules integrated with advanced control, cooling, and protection systems.
Battery modules are made by sorting and matching cells, then connecting them electrically and integrating BMS and thermal management systems. The final step involves testing and validation to ensure safety and consistent performance.
Battery modules are classified based on chemistry, cell format, and application. Common types include LFP and NMC modules, cylindrical or prismatic designs, and modules for EV, energy storage, or industrial use.
