MS0505-25.6V280A-(280AH1P8S)-ZD

MS0505-25.6V280A-(280AH 1P8S) modules have a nominal voltage of 25.6V and a rated capacity of 280Ah, using a 1P8S arrangement. The batteries are meticulously designed and precision manufactured for unrivalled performance. Its high energy density and powerful capacity make it ideal for demanding applications, providing stable and reliable power supply.

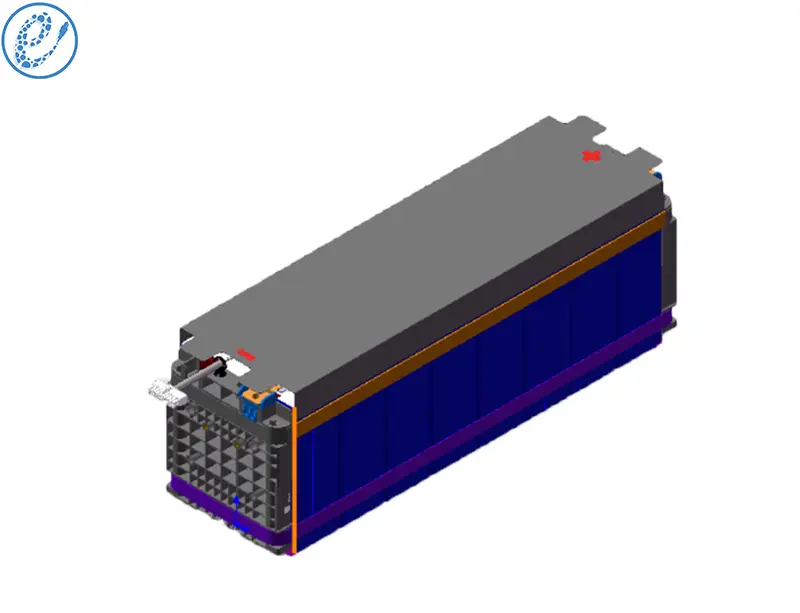

MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module


Specification of MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module

No.ItemsMSXX2-25.6V280ANote
280Ah1P8S
1Nominal voltage(V)25.6
2Operating voltage(V)min20
3max29.2
4Nominal capacity (Ah)2800.5C, 25℃
5Nominal energy (KWh)7.1680.5C, 25℃
7

Cell Configuration

1P8S
8End of life residual capacity (Ah)224
9Module weight (Kg)47.72
10Maximum continuous charge current (A)280
11Maximum continuous discharge current (A)280
12Maximum pulse discharge current (≤30s) (A)56025℃
13SOC operating range (%)10~90
14Insulation requirements(MΩ)≥20
15Module cooling methodNatural cooling
16Module heating filmNo
17Shipping capacity (SOC)≈30%SOC is consistency in the same batch

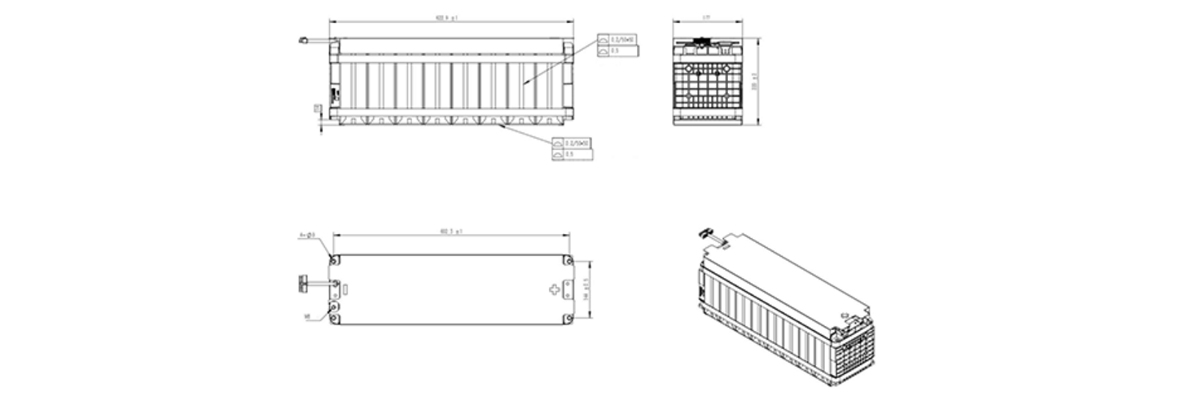

18Dimension L (mm)677.6
Dimension B (mm)180
Dimension H (mm)225


MS0505-25.6V280A-(280AH 1P8S)


MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module


MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module


MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module


MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module


MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module


MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module


MS0505-25.6V280A-(280AH 1P8S) LFP280Ah 1P8S Module
