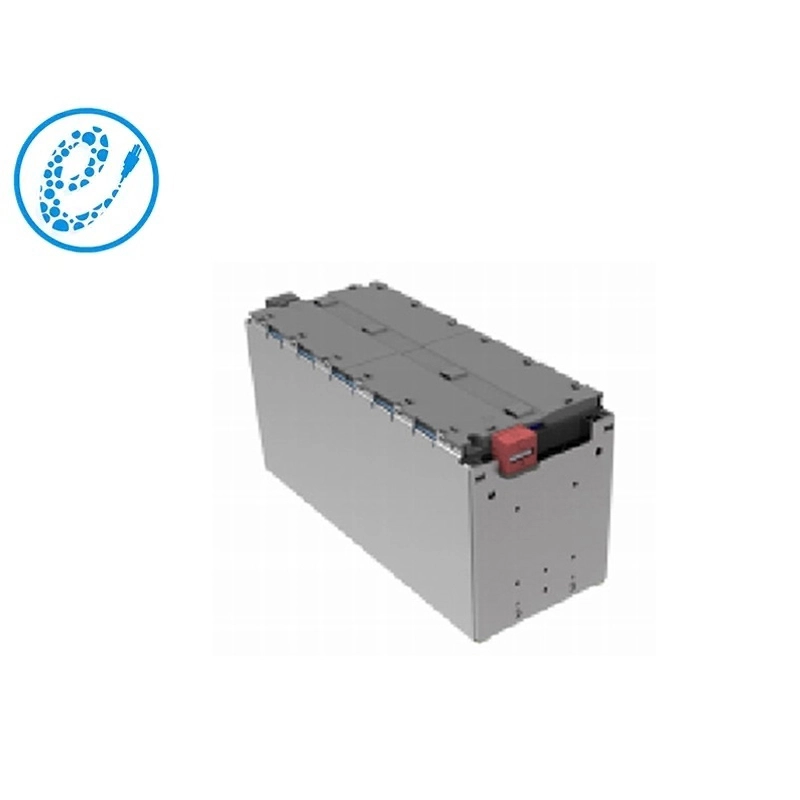

The MS0202-25.76V302A-(302AH1P8S) module has a standard voltage of 25.76V and a standard capacity of 302Ah. It has a cycle life of 2,000 cycles and can be recharged at a rate of 1C. Battery pack module also has built-in safety features including over-temperature and over-current protection as well as short-circuit protection. This module is ideal for renewable energy applications, electric vehicles and more.
| Items | EP-LFP302Ah STANDARD MODULE | Note | |
| MS0202-25.76V302A | |||
| 302Ah1P8S | |||
| Nominal voltage(V) | 25.76 | ||
| Operating voltage(v) | min | 20 | T＞0%℃ |
| max | 29.2 | ||
| Nominal capacity (Ah) | 302 | 1/3C，100%DOD | |
| Nominal energy (KWh) | 7.779 | 1/3C，100%DOD | |
| Cell Configuration | 1P8S | ||
| End of life residual capacity (Ah) | 241.6 | ||
| Module weight (Kg) | 44.92 | ||
| Maximum continuous charge current (A) | 302 | ||
| Maximum continuous discharge current (A) | 302 | ||
| Maximum pulse discharge current (≤30s)(A) | 604 | ||
| SOC operating range (%) | 10~90 | ||
| Insulation requirements(MΩ) | ≥20 | ||
| Module cooling method | Natural cooling | ||
| Module heating film | No | Or heating film | |
| Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | |
| Dimension L (mm) | 677.6 | ||
| Dimension B (mm) | 180 | ||
| Dimension H (mm) | 225 | ||
