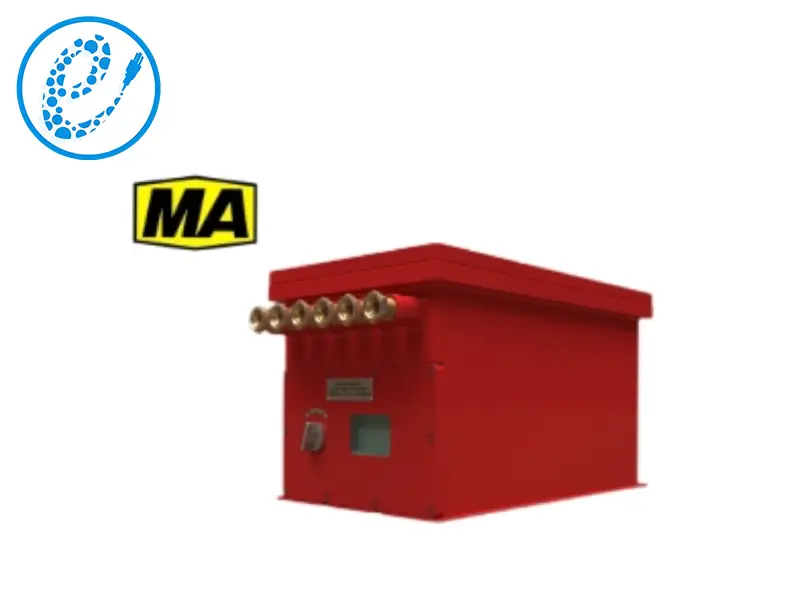

LFP100AH1P40S


Flame-proof Lithium-ion Battery Power Supply For Mining


No.ItemsEP-LFP100Ah STANDARD PACK
100AH1P16S100AH1P40S100AH1P60S
1Nominal voltage(V)DC51.2DC128DC192
2Nominal capacity(Ah)100100100
3Nominal energy(KWh )5.1212.819.2
4Cell Configuration1P15S1P40S1P60S
5Upper   Charge VoltageDC58.4VDC146VDC129V
6Lower Discharge VoltageDC40VDC100VDC150V
7Recommended SOC usage   window20%-100%20%-100%20%-100%
8Rated charging current(A)50A50A50A
9Rated discharge current(A)100A100A100A
10Temp. ConditionOperation     (Charge)0-40℃0-40℃0-40℃
Operation   (Discharge)-20-45℃-20-45℃-20-45℃
11Cooling methodRadiation   transferRadiation   transferRadiation   transfer
12IP level of cabinIP54IP54IP54
13EMCGB/T18387-   2001GB/T18387-   2001GB/T18387-   2001
